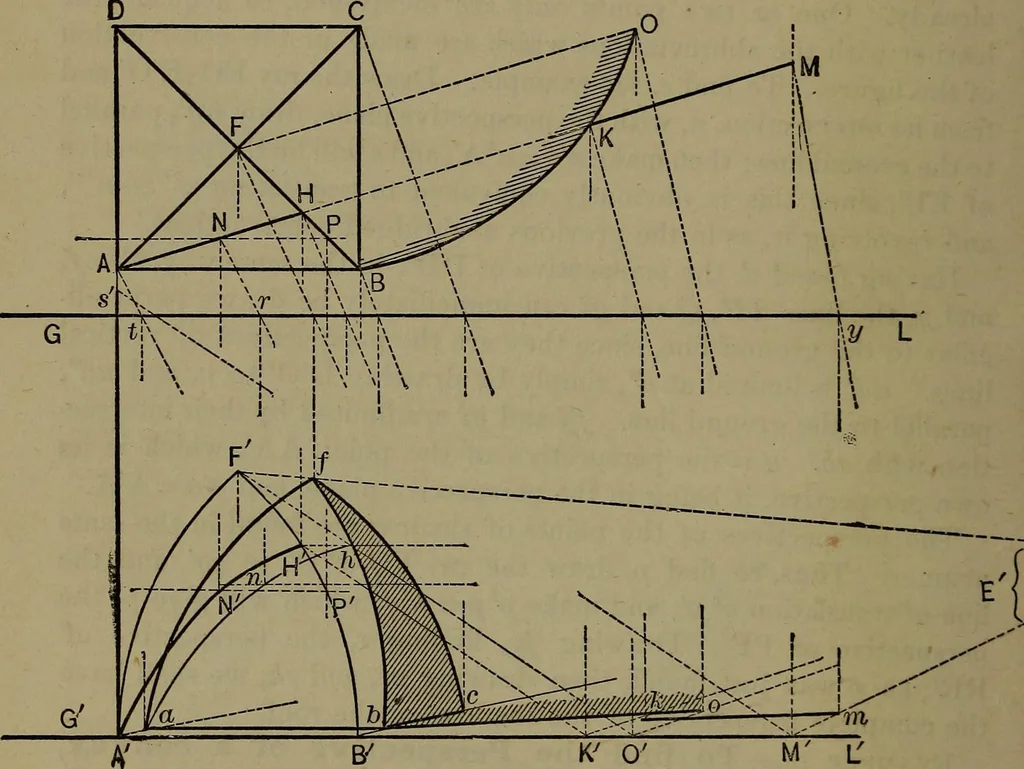

efore,/ for the perspec-tive of FF, and o for the perspective of the point of shadow. 74 LINEAR PERSPECTIVE. 0. Operating similarly for other points, we find the perspec-tive, abcf, of the dome ; llco, the perspective of the shadow of theedge BHE-BHF on the horizontal plane ; and hm, that of… … B^ig. 39a by taking planes, as NP, parallel to the vertical plane, and cut-ting the dome in a horizontal line, NP-NT (P projected fromP),^on which N is projected at W. The perspective n, of ISTN,is then found, as before, as the point r, n, where the visual rayNE-NE pierces the perspective plane.…
