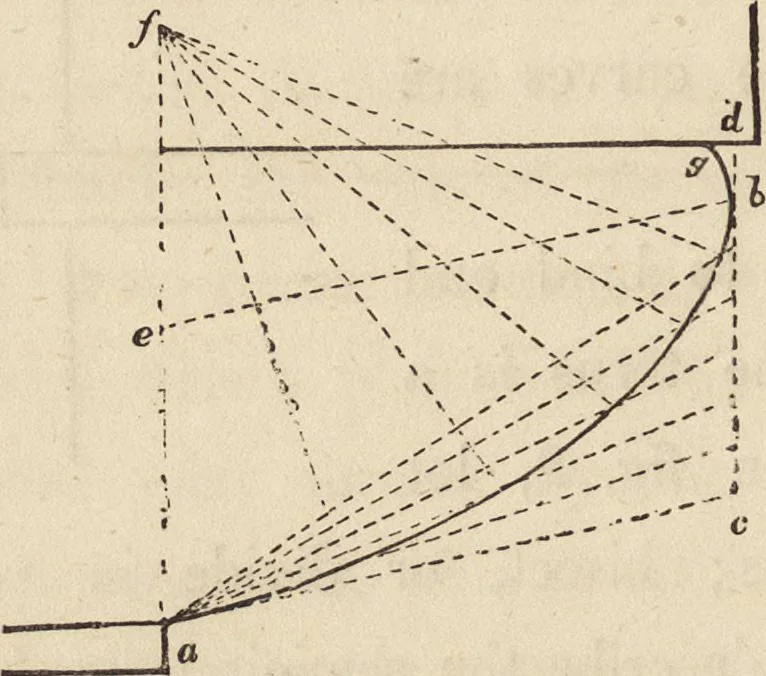

ing done, the curve, a c, is the contour of the ovolo. The Greek ovolo, fig. 5, unlike the Roman ovolo, cannot be described by meansof circular arcs; it must be described by finding a number of points in it. For thispurpose draw the tangent, a c, from the lower extremity, a, indicating the… … c b; make ef equal to a e; divide the lines e b and be into the same convenientnumber of equal parts; draw straight lines from the point, a, to the points of division in b c, and similarly draw straight lines from the point, fthrough the points of division in b e, meeting successivelythe lines…
