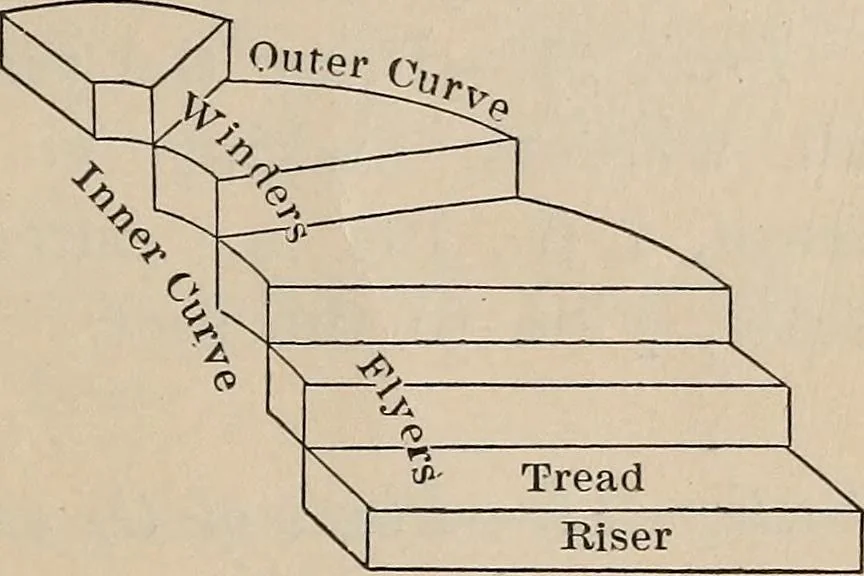

1 ft.; ra-dius of outer curve ofof winders, 5 ft.; scale,J in. to the ft. (Fig. 48). Prob. 17.—Draw the plan of a flight of 6 steps, 4 flyers and 2 winders, making a quarter turn.Treads of flyers, 3 ft. X 10J in.; outer radius of winders, 5 ft. 6 in.; inner ra-dius, 18 in.; scale, i in. to thefoot.… … Fig. 48. Lee
