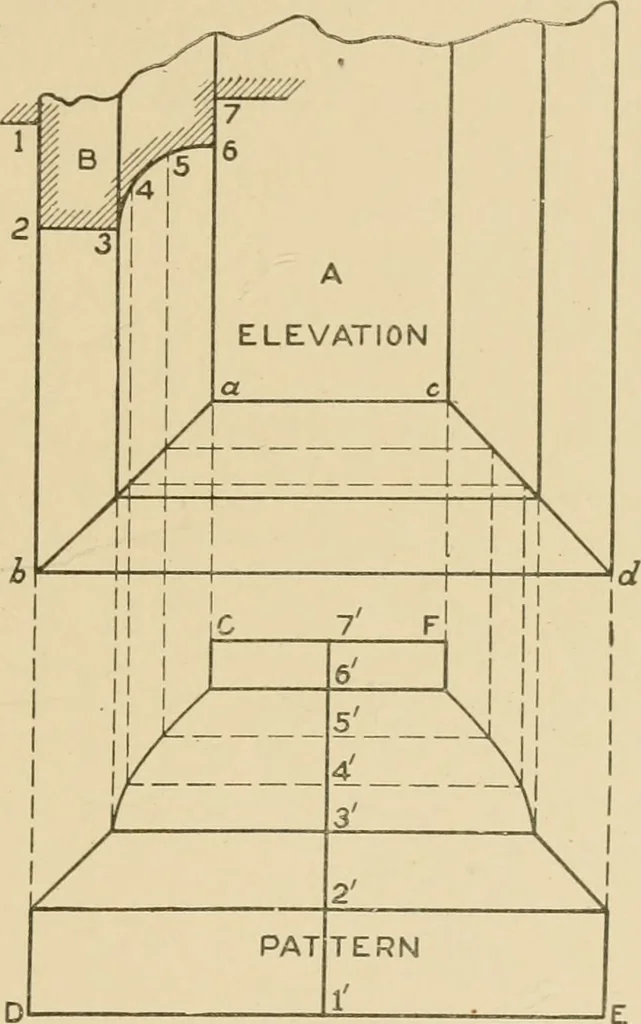

Fig. 281. Fig. 282. secting the miter-line a 6 as shown. From these intersections, par-allel to b d, draw fines intersecting also c d. At right angles to b ddraw the stretchout fine V 1, upon which place the stretchout of theprofile B. At right angles to 1 7, and through the numberedpoints of…
