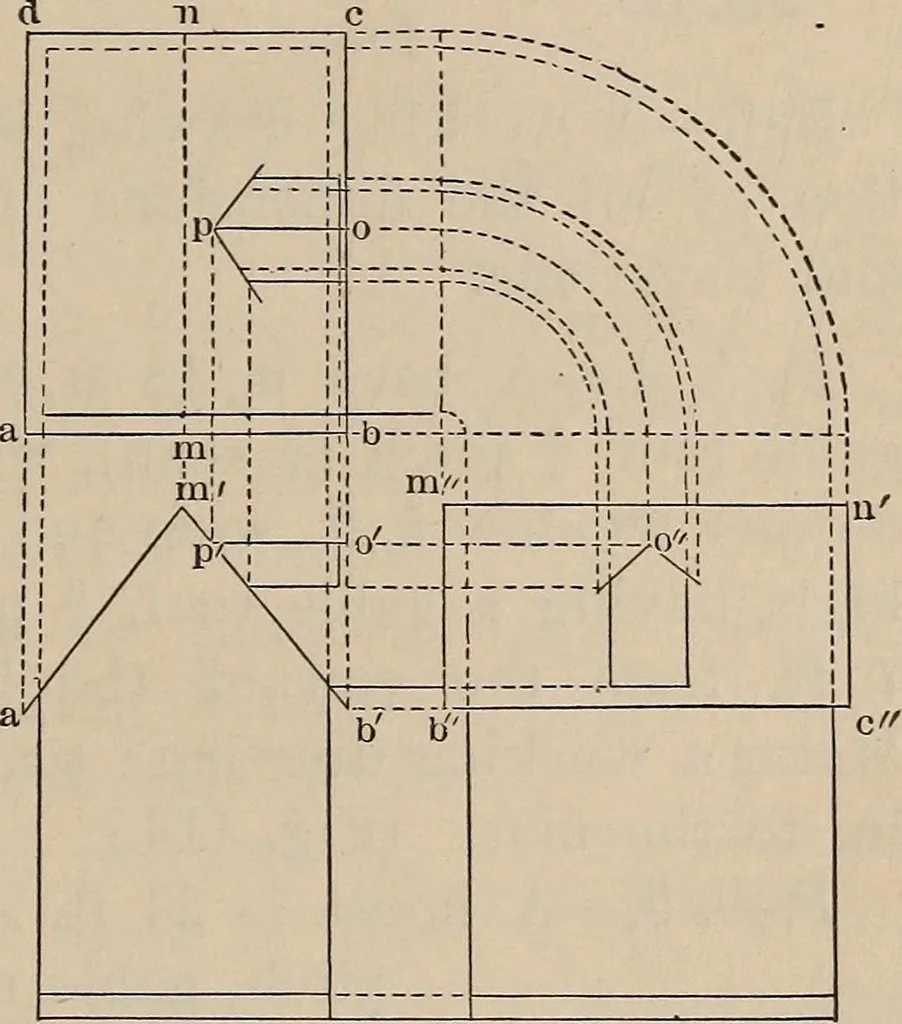

tion.—Draw the end elevation of a house and the side elevation of a dormer window, abop! rnf a. From this construct the plan, and find p, which is the plan of the point where the ridge ofthe dormer window, op, will meetthe roof. From these construct theside elevation. (Fig. 110.) Prob. 2.—A house… … Fig. 110.
