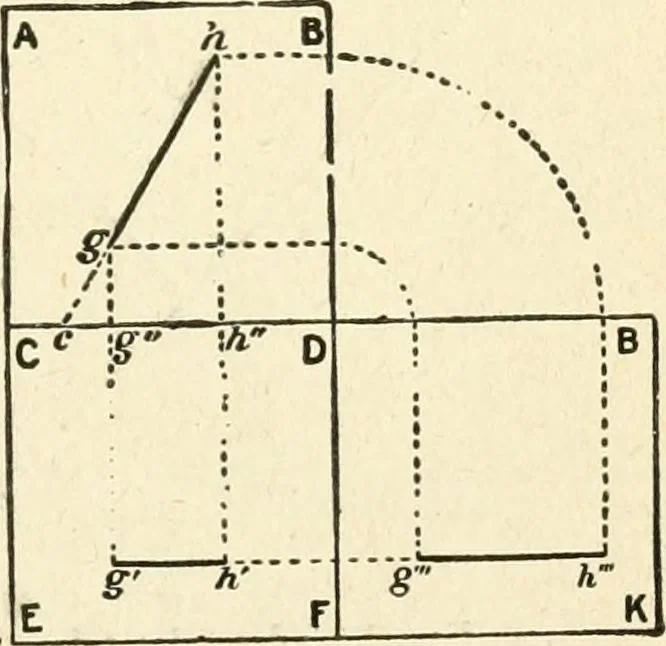

Yo. /. No.2. -No. 1. Perspective View. No. 2. Vertical and Horizontal ProJeclionB Fig. 4. Let the given line GH (Fig. 4) be parallel to thevertical plane, but inclined to the horizontal plane.Then gh will be a vertical projection, and gh itshorizontal projection or plan. By producing h g till…
