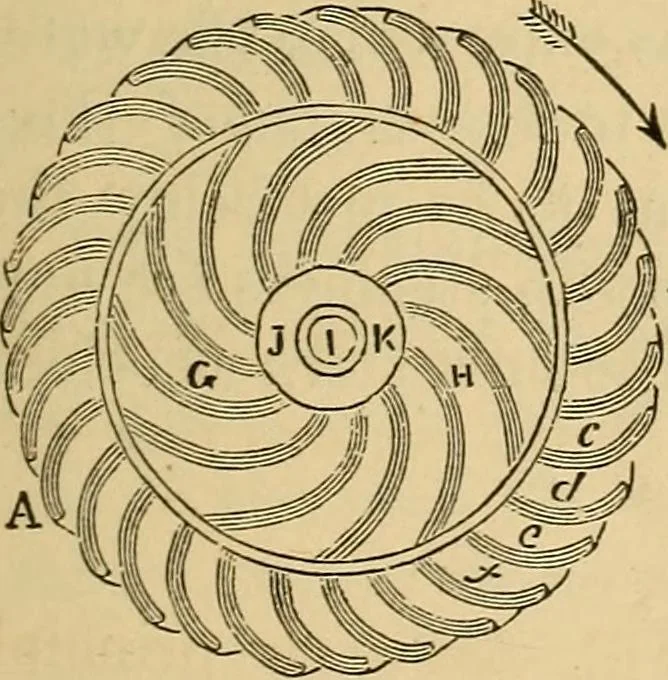

Fig. 101. 281. large n In principle, • the Turbine Wheel, Fig. 102, is aumber of tubes united together. It consists of acentral portion GH divided intocompartments by curved parti-tions, into which water flows froma flume. A rim AB is dividedinto compartments by partitions,c, d, e, f, curved in the… … 80 MECHANICS OF LIQUIDS. the plate is also attached to the shaft I. This rim, plate andshaft turn together, while the central partitions do notmove. The water pours into the central portion, and flowsthence to the rim, where it strikes the curved partitions atright angles and is stopped. Thence it…
