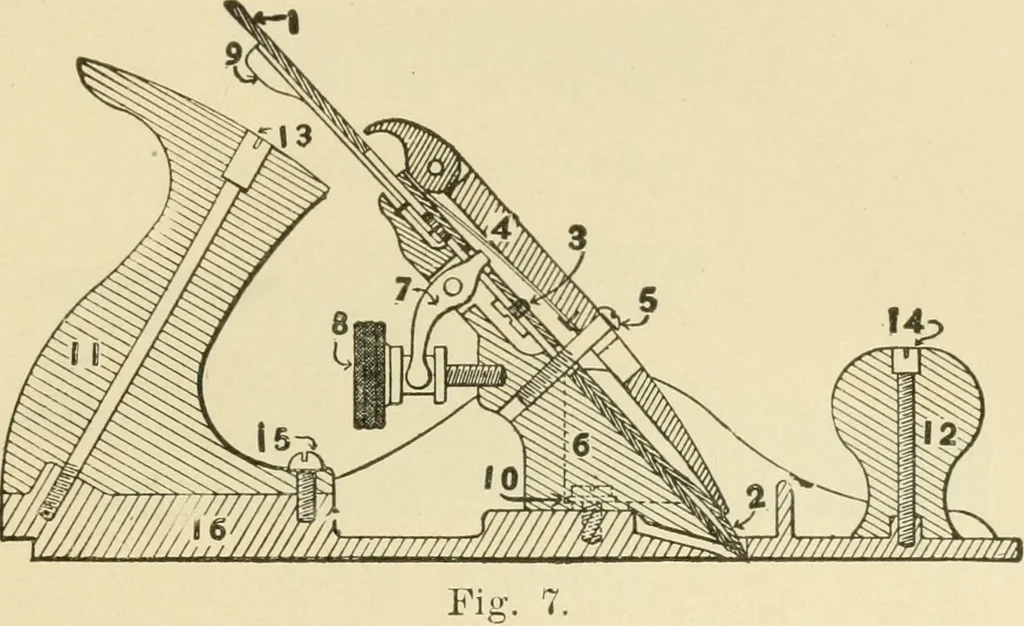

t forward in direction ofworking force. Keep legs and back straight, but not in a constrainedposition. When end planing on bench hook is to be done, set cap back aboutone-eighth of an inch, and hold side of plane firmly on the bench close tobench hook. If plane clogs with shavings remove iron to… … LIST OF PAETS OF BAILEY PLA:N^E 1. Plane-Iron. 2. Plane-Iron Cap. 3. Plane-Iron Screw. 4. Cap. 5. Cap Screw. 6. Frog. 7. Y Adjustment. 8. Brass Adjusting-NutThumbscrew. 9. Lateral Adjustment. 10. Frog Screw. 11. Handle. 12. Knob. 13. Handle ^Bolt and ISnt 14. Knol) ^^ Bolt and Xut. 15. Handle…
