Elementary treatise on physics experimental and applied for the use of colleges and schools (1890)
Ganot, A. (Adolphe), 1804-1887, Atkinson, E. (Edmund) · New York : W. Wood · leaf 490

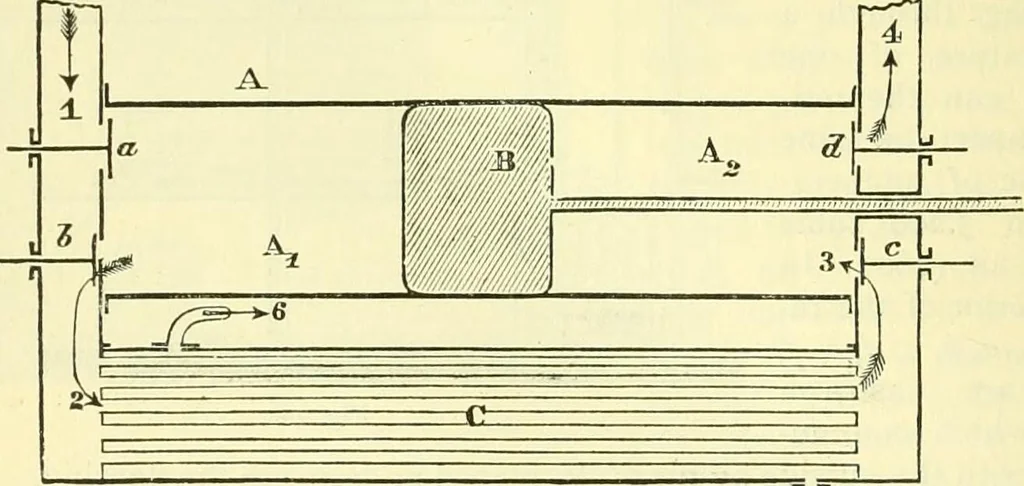

d, the valve b opens, and air passes in the direction of thearrows into the cooler, C. By its compression it has become stronglyheated, and the necessary cooling is effected by means of pipes throughwhich cold water circulates, entering at 5 and emerging at 6. The air, thuscompressed and cooled,… … Fig. 429. ^^^ for at a certain position of the piston the valve c is closed, the compressedair in the cylinder A., expands, and thereby is cooled far below the freezingpoint. As the piston moves again to the right, the valve d is opened by theworking of the machine, and the cooled air emerges…
Physics
Internet Archive · University of Connecticut Library · Public Domain Mark 1.0. Free to use for anything.
