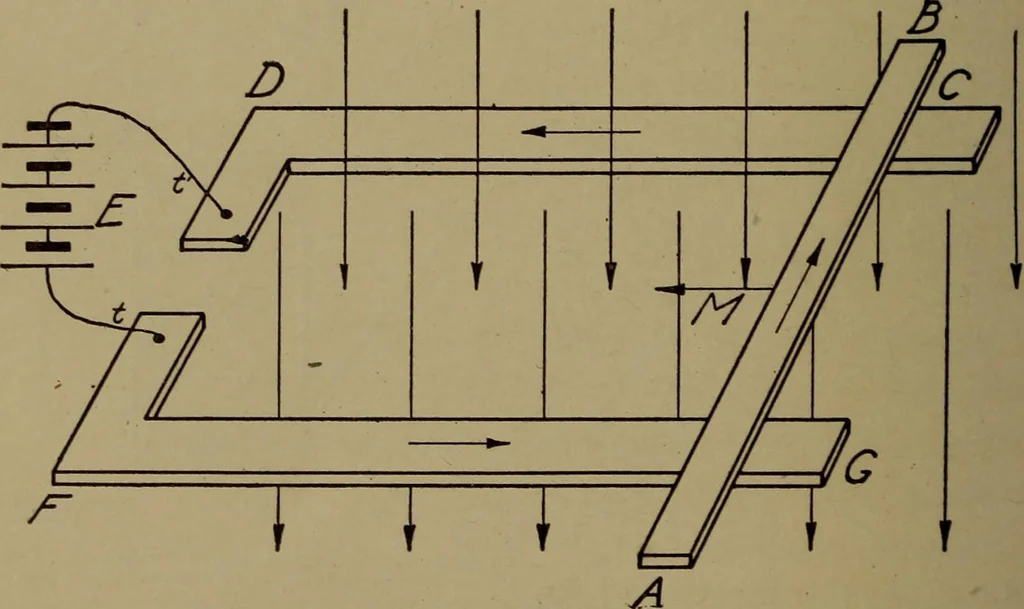

An illustration from Small motors, transformers, electromagnets; a practical presentation of design and construction data for small motors, small low- and high-tension transformers, electromagnets, and induction coils, 1920, leaf 169 — . 3. If, then, the current in the mov-able conductor AB, Fig. 7, is in such a direction and of such anamount as to cause AB to actually move to the left, thus reducingthe number of lines of force, a pressure will simultaneously beinduced in the circuit, according to the right-hand rule, in a… … ^rtce ^ Fig. 7. Graphic Representation of Effect of Motion on Induced Currents resultant current in the circuit must therefore be the differencebetween the current produced by the battery and that resultingfrom the induced pressure. Whenever the conductor AB stopsmoving, there is no induced…
