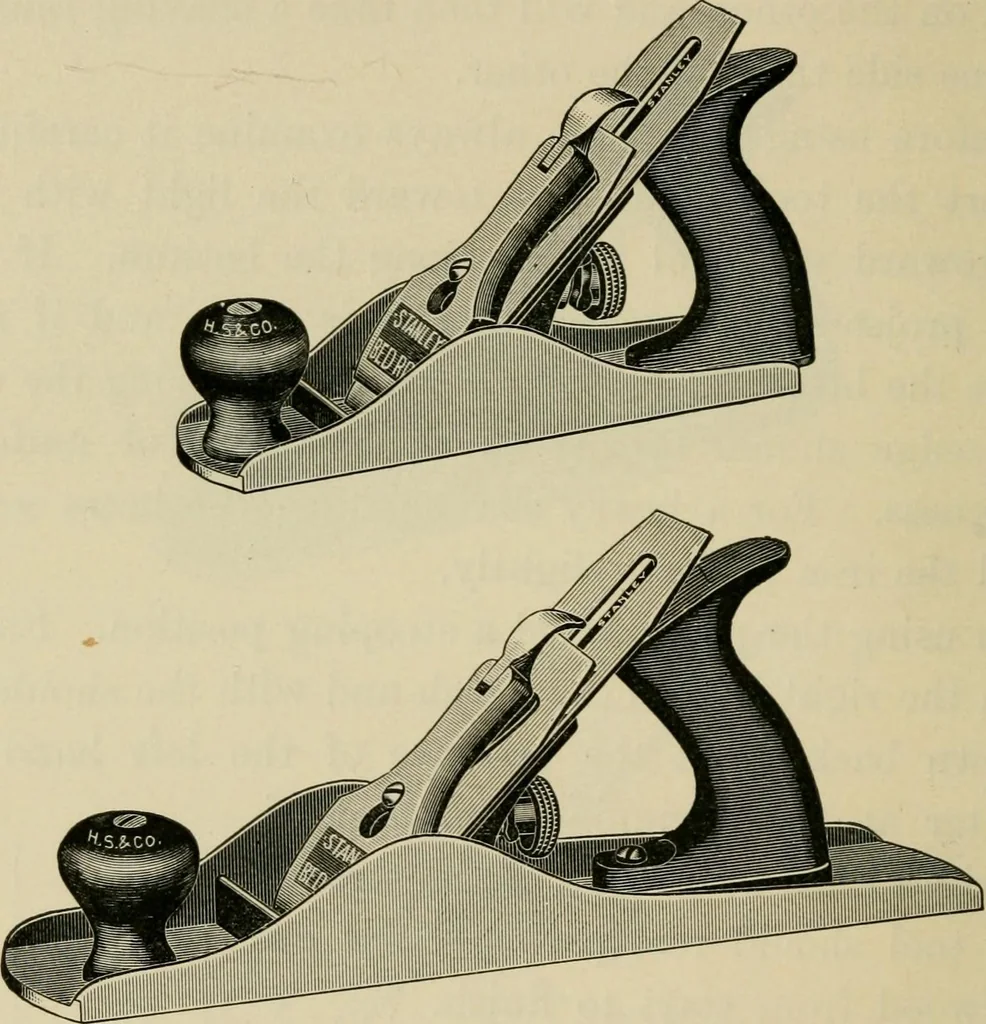

om start to finish. 10. The Jack Plane. The ordinary ^^^ ^s. irons ofplane iron has a straight edge, as shown Smooth and Jackat a. Fig. 23, but when a large quantityof wood is to be removed the iron is sharpened inthe shape shown at h. This curved iron will cut outthe wood in.hollows, leaving… … Fig. 24. Kelative Sizes of Smooth and Jack PlanesThe lower figure is a jack plane 11. The Smooth Plane. The smoothing plane is shorterthan the jack plane, its object being to smooth the sur-face without regard to straightening it, as it is supposedthat the straightening has previously been done.…
