First lessons in manual training and carpentry (1907)
Craftsman's home study schools, Freeport, Ill. [from old catalog] · Freeport, Ill., The Craftsman's home study schools · leaf 22

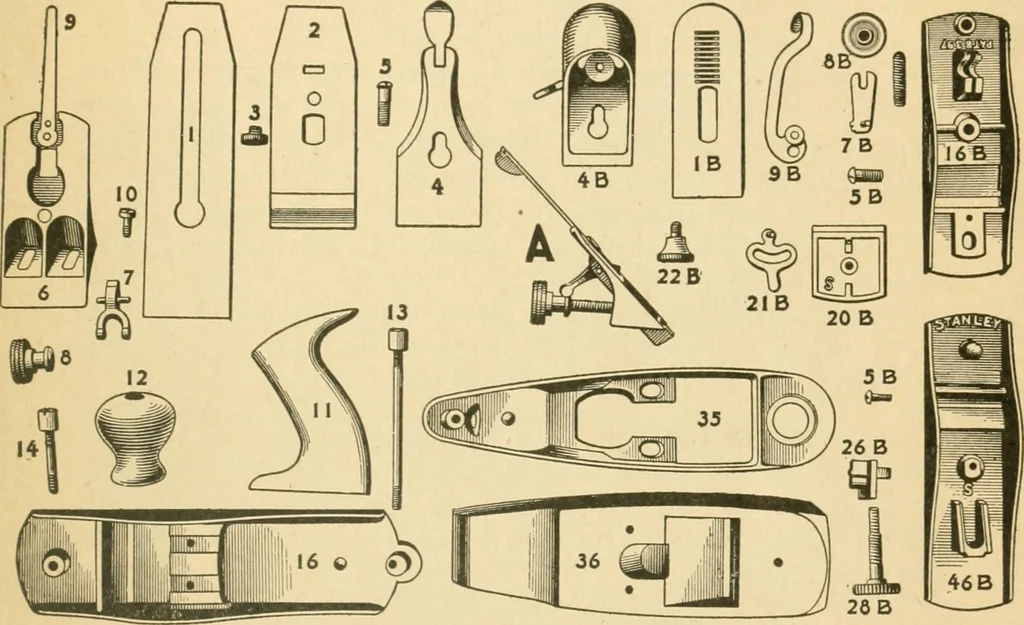

it, as the straightening has previously been done. 20 THE CRAFTSMANS HOME STUDY SCHOOLS The Jointer is the most important plane the skilled woodworkerknows. For making glue joints, straight edges or straight surfacein general it is indispensable, although for pieces of short lengths theJack Plane… … PARTS OF BLOCK PLANES. No. IB Plane Iron. No. 4B Plane lion Cap. No. 5B Cap Screw. No. 7B Adjusting: Lever, No. 8B Adjusting Nut. No. 9B Lateral Adjustment. No. 16B Bottom (Adjustment Throat ) No. 20BNo. 21BNo. 22BNo.26BNo. 28BNo. 46B Mouth Piece.Eccentric Plate.Knob. Adjustable Frog:.Adjusting:…
Carpentry
