The elements of dynamic electricity and magnetism (1903)
Atkinson, Philip. [from old catalog] · New York, D. Van Nostrand company · leaf 199

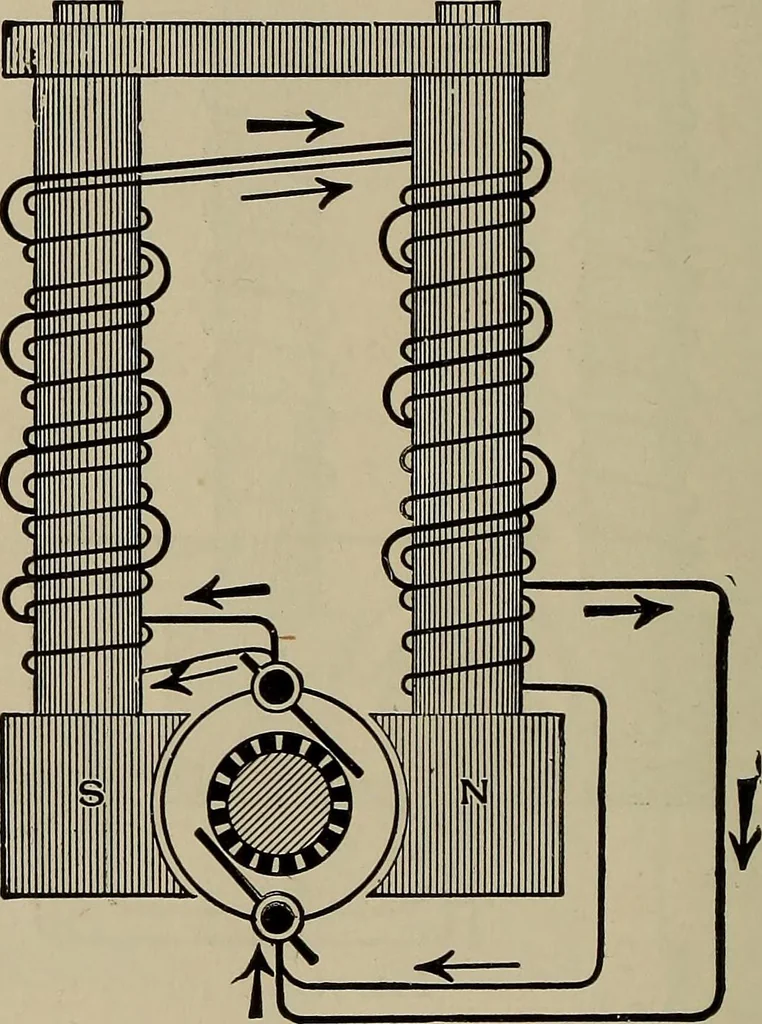

increased 182 DYNAMIC ELECTRICITY AND MAGNETISM, by the diminished flow of current in the ratio this in-creased resistance bears to itself plus the armatures resist-ance: and as the resistance of the shunt remains constant,the strength of its current is proportionally increased bythis increase of… … FiG. 77.cuits; thus supplying electric energy to overcome theincreased resistance. By this series of adjustments anequilibrium between these various factors is established,the total electric energy developed, varying as the me-chanical energy expended. Decrease of external re-sistance reverses…
