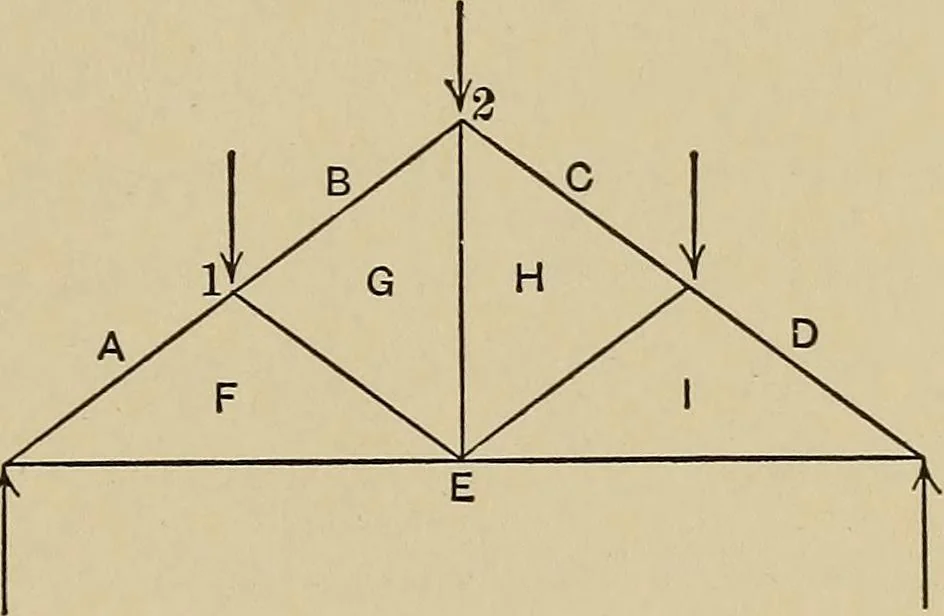

in the member separatingthe spaces lettered F and G, may ^^^- ^^• be known as GF or as FG, according to the end of the memberunder consideration. If the end considered is that at joint ithen the stress in the member is known as GF, because the forcesabout that joint, taken in clockwise order, are… … Il6 THE ELEMENTS OF MECHANICS OF MATERIALS 56. Force Diagram. — Taking the forces of Fig. 77 in clock-wise order, and denoting them by the corresponding small let-ters of the alphabet, we may represent them in magnitude anddirection in a diagram by lines drawn to some chosen scale.Such a diagram is…
