Hicks, I. P. (Isaac Perry), b. 1856 · Omaha, Neb., I.P. Hicks · leaf 55

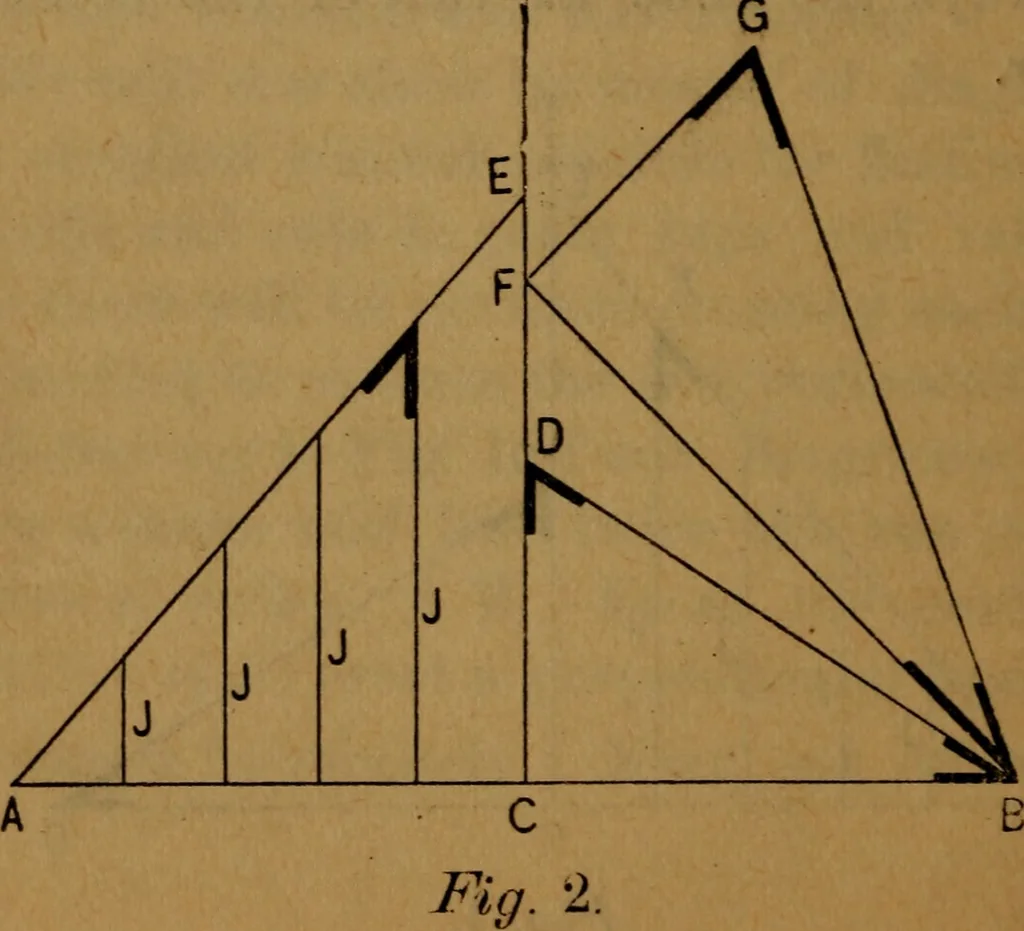

the bottom cut, and therise of the common rafter to the foot run onthe tongue for the top cut. As some maythink a plan that does not show the cuts of ahip as well as its length, is incomplete, wewill take the same plan and by the additionof .3 more linos show every thing that can hedesired.… … THE BUILDEKS GUIDE. 47 from P the rise of the common rafter to G,connect G and B for the length of the hip. A bevel set in the angle at G will give ihetop cut and in the angle at B the bottom cut. It will be noticed in figure 2 that the linesA E and G B, are of the same length and inboth cases…
Building
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
