The elements of the mechanics of materials and of power transmission (1911)
King, William Richard, 1852- · New York, J. Wiley & sons; [etc., etc.] · leaf 150

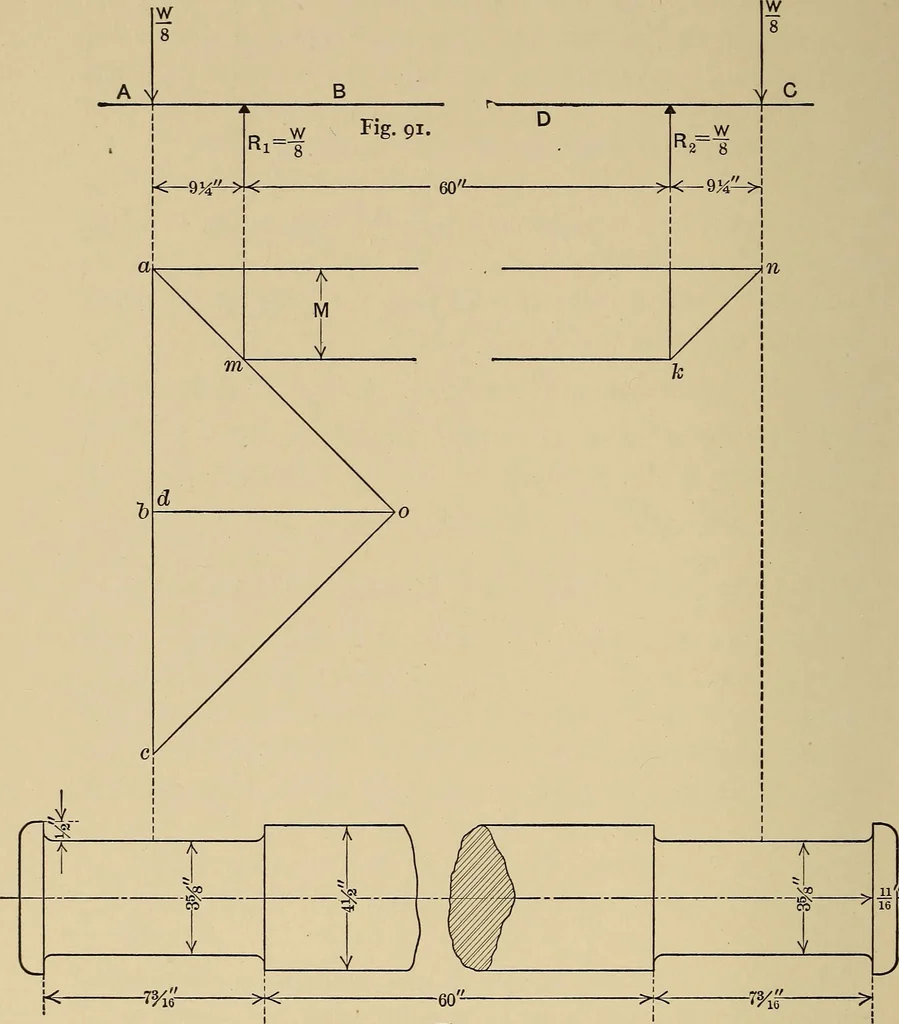

ds-feet, or 5Vinch = 194 pounds-feet, which is a convenient bending-momentscale. Draw the vectors oa, oh, and oc. Commencing at some pointm in the line of action of i?i, draw ma parallel to oa, and from a,the point of intersection of ma with the line of action oi AB^draw an parallel to oh, and from… … Fig. 92. FUNICULAR POLYGON 141 polygon, or bending-moment diagram., of the axle. Draw odparallel to km\ it will, of course, coincide with oh, since ah andhe are equal and 0 was taken on the horizontal through h.The bending moment M between the supports is constant and measures -^^ X 194 = 4500…
