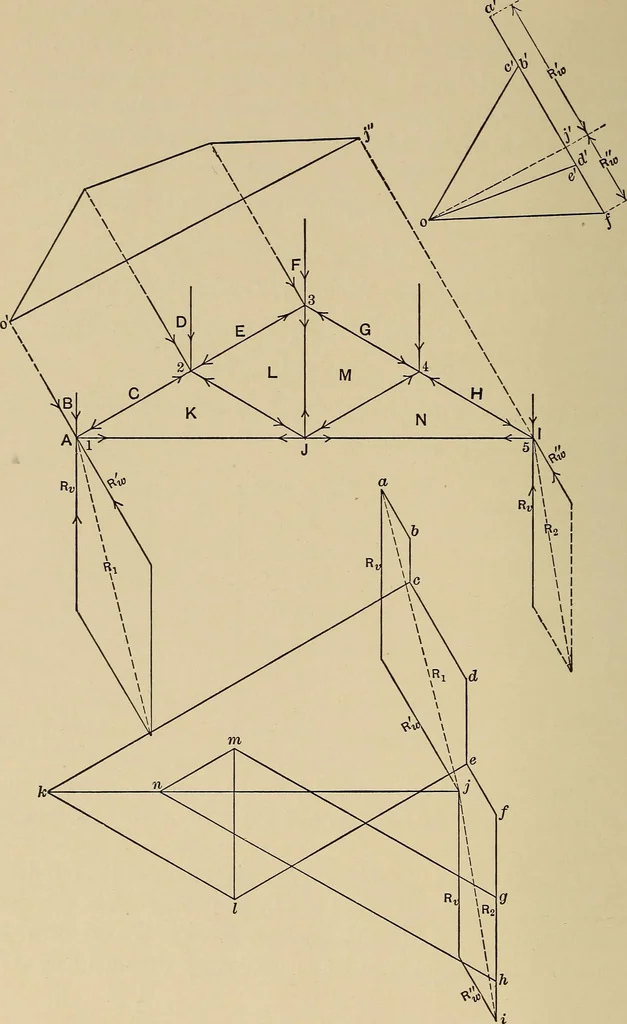

Struts The solution of this problem with the consideration of all theforces, as shown in Fig. 107, rejecting none at the supports, isinstructive. Lay off the load line abcdefghi to scale. Each of the reactionsR^ is equal to 1.5 tons = 1X4=1 inch to scale. The effectivewind reactions are found by… … Fig. 107. FRAMED STRUCTURES — RECIPROCAL DIAGRAM 173 in order to obtain the full reaction RJ at the left support dueto the wind. Commencing at i the reactions RJ, R^, RJ, R^are each set off in magnitude and parallel direction, closing theforce polygon at a. The reciprocal diagram can now be drawn,…
