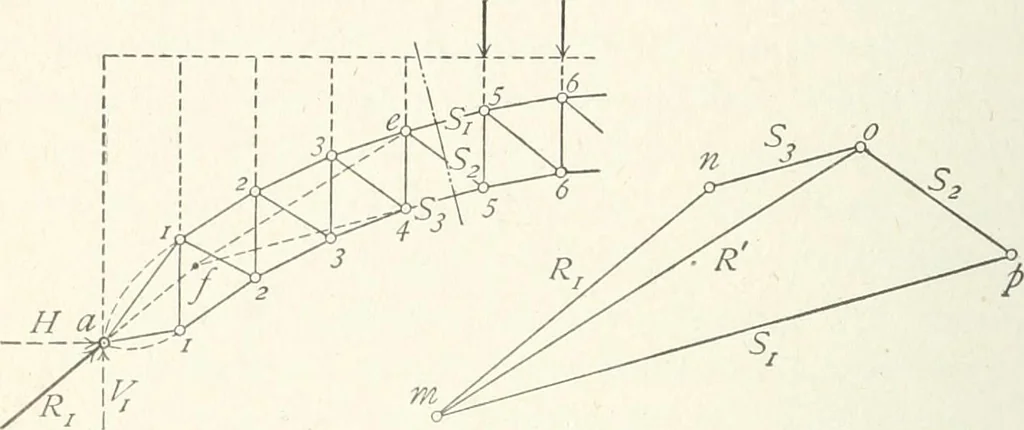

ob. yy. Art. 84. Arch Rib with Open Web. When the chords are united by open bracing as in Fig. 124the maximum stresses in the chords may be found in the samemanner as for a solid web by using as centers of moments thepoints where the verticals are intersected by the axis of the rib. 236 TWO-HINGED… … Fig. 124. moment is a maximum in section 4-4. If the loading werefound for the maximum moment at the lower panel point 5 andthe value of the moment divided by the lever arm of S^ thesame result would be obtained as by adding the stress due tothe maximum moment at the intersection of the axis and…
