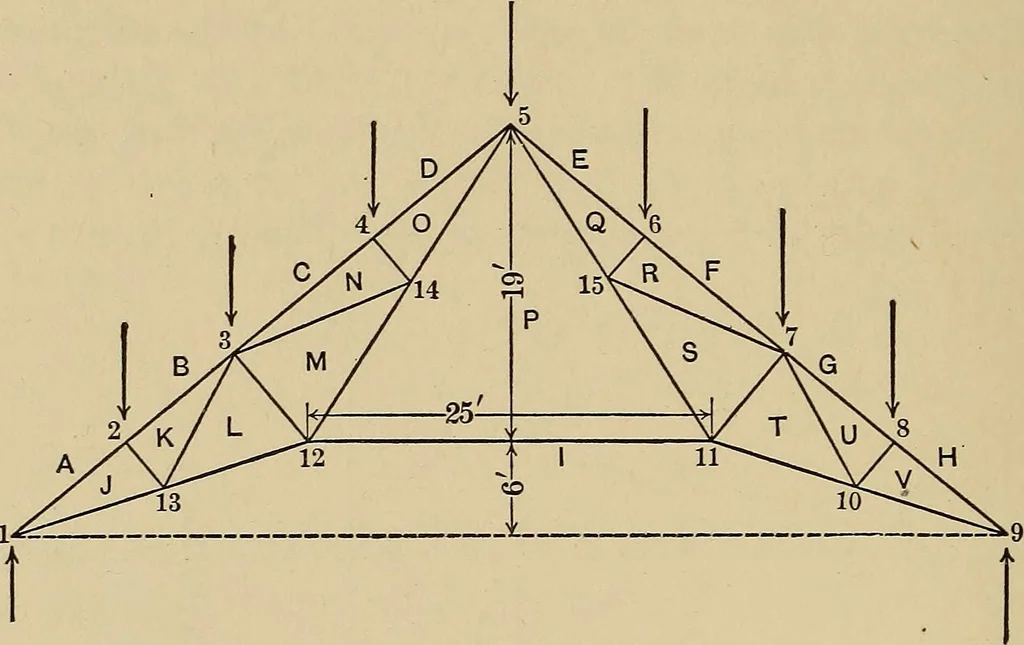

each. The wind pressure is assumed to have a horizontal inten-sity of 20 pounds per square foot. Assuming the truss to be fixed at oneend and free to move on expansion rollers at the other, determine themaximum stress in each member. Scales: Linear, -^q inch =1 foot; load,i inch = I ton. 8. The… … Fig. j. 9. A bridge truss, a portion of which is shown in Fig. k, has a span of120 feet divided into six equal bays. It is designed to carry a dead loadof 16 tons at each of the lower panel points. Calculate, by the method ofsections, the stresses in the members GM, MN, and NC, and indicate…
