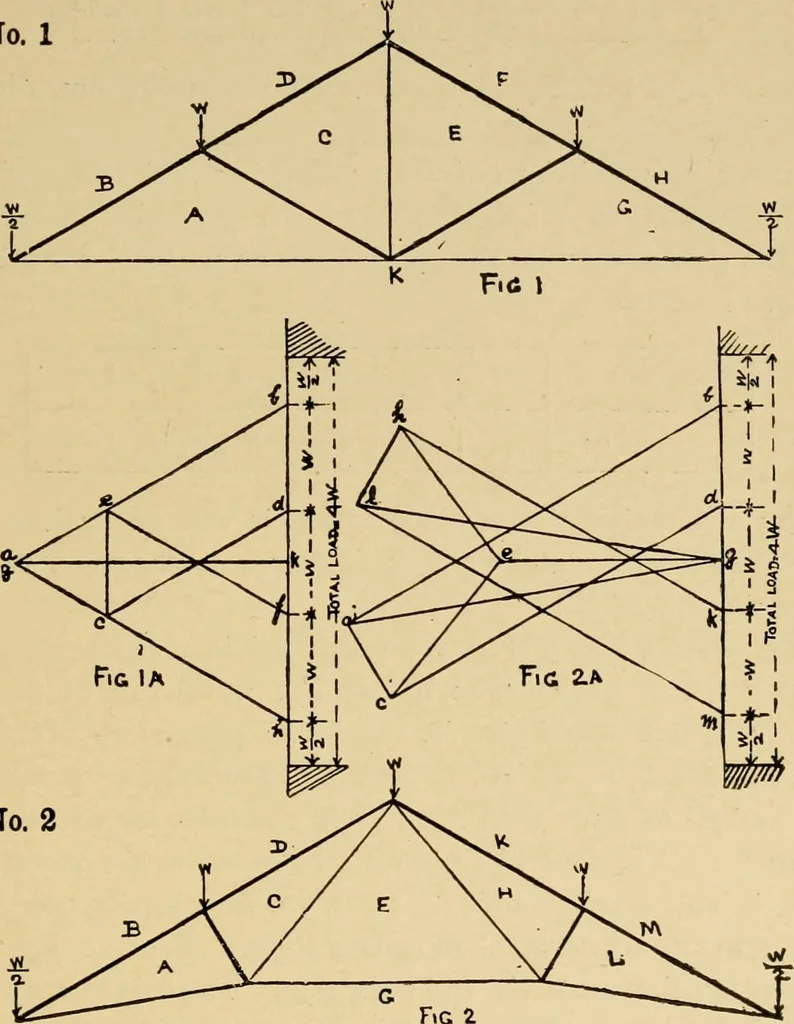

pported, it should be divided into four parts; thepoint between D and Staking one half of Fand D, the pointbetween B and D one half of each, and each abutment onehalf of B and one half of H. The fine lines represent tension,the heavy lines compression. TRUSSES. 17 With any convenient scale, as Fig.… … No. 2 Begin with the joint at foot of rafter and draw ab parallelto AB, and ak parallel to AK until it meets ab at a ; draw cdparallel to CD; draw ac parallel to AC, and ce parallel to CE. 38 ARCHITECTURAL IRON AND STEEL. The joints to the right will be similar to those on the left, thetruss being…
