The elements of the mechanics of materials and of power transmission (1911)
King, William Richard, 1852- · New York, J. Wiley & sons; [etc., etc.] · leaf 258

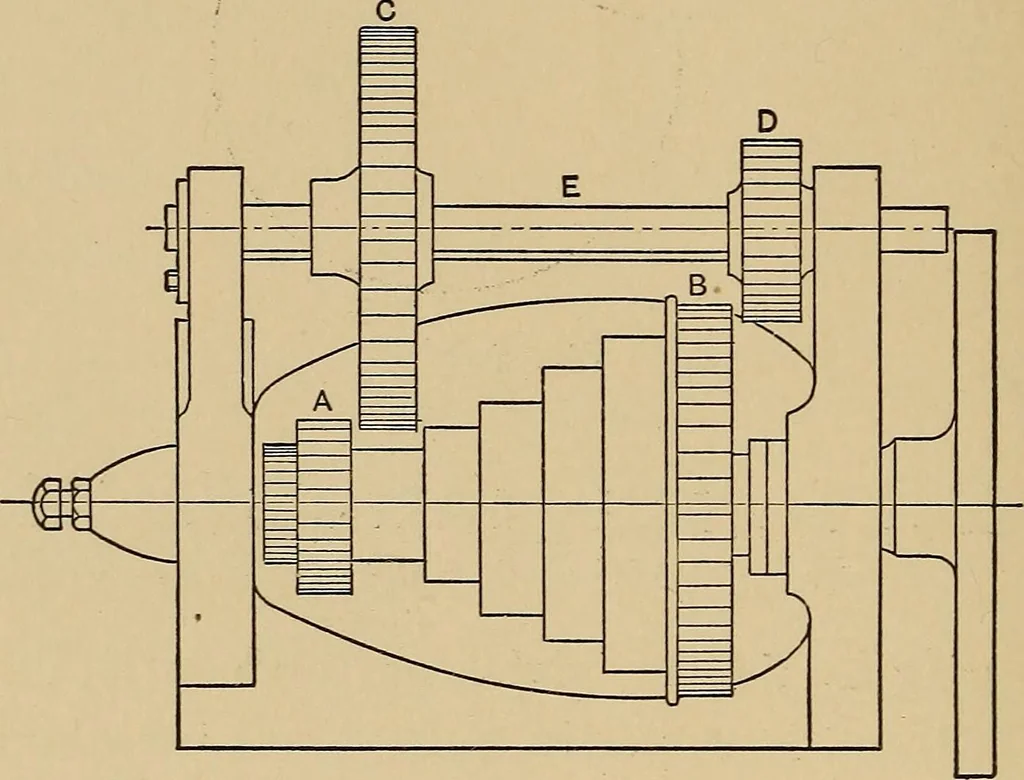

ur wheel B is made to engage with thespeed cone by means of a bolt, thereby giving to the lathe spindlethe same revolutions that are made by the cone pulley, (b)Disengaging the wheel B from the speed cone and throwing theback gear into gear with wheels A and B, the motion of the conepulley is then… … Fig. 13. 26. Transmission of Power by Toothed Wheels. — In the different mechanisms employing a train of toothed wheels forthe transmission of power, either the movement of a small powerthrough a comparatively great distance is utiHzed in overcominga much greater resistance through a much smaller…
Mechanics, Applied · Power transmission
