The elements of the mechanics of materials and of power transmission (1911)
King, William Richard, 1852- · New York, J. Wiley & sons; [etc., etc.] · leaf 39

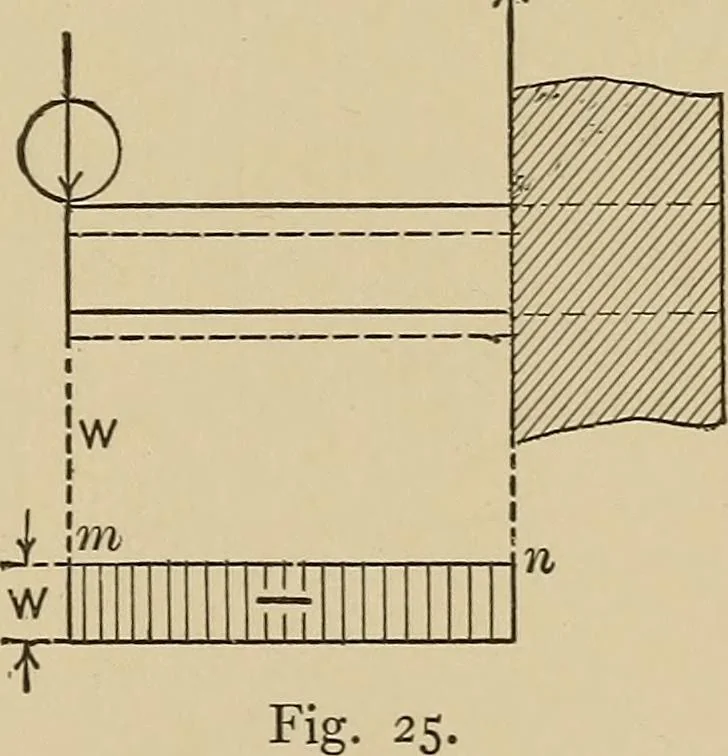

xis, or base line, and the nega- ar^wtive part below. The failure from overload of a shortcantilever. Fig. 25, will be from shear,the projecting part shearing off bodilyfrom the part built in. According toour definition the shear at all sections ofthe beam is constant and equal to — W.The shear is… … 30 THE ELEMENTS OF MECHANICS OF MATERL\LS In the case of the simple beam of Fig. 26, a failure from shearwill occasion the part between the supports to sHde down, assho\\TL by the dotted lines. By our definition the shear atany section to the left of the load W is Ri, and at any sectionbetween W…
Mechanics, Applied · Power transmission
