Mechanics of engineering. Comprising statics and dynamics of solids: and the mechanics of the materials of constructions, or strength and elasticity of beams, columns, arches, shafts, etc (1888)
Church, Irving P[orter], 1851- [from old catalog] · New York, J. Wiley & sons · leaf 500

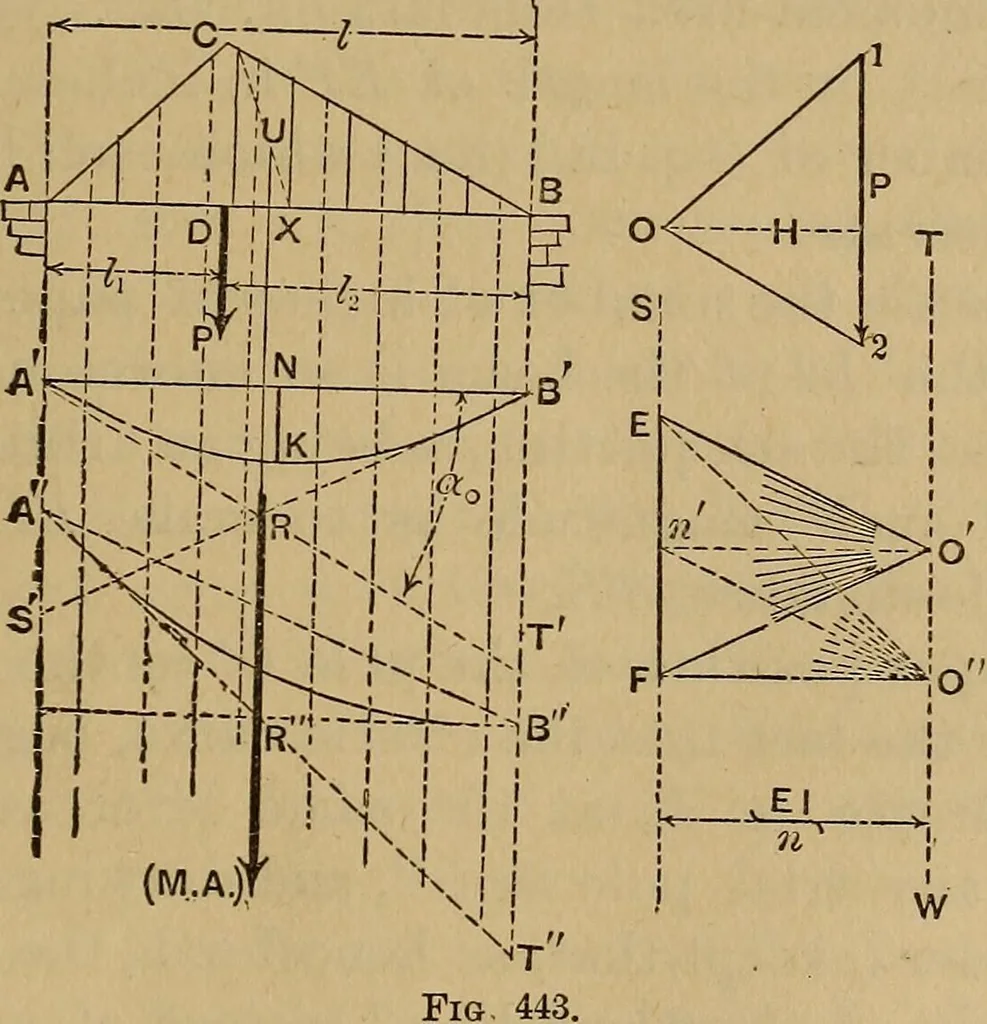

whoseVertical dimensions are n times as large as those of the realcurve; while the position of the pole will depend in thedirection of the tangent lines at the extremities of the span.An example will now be given. 393. Example of an Elastic Curve (Beam Prismatic) Drawn asan Equilibrium Polygon… … consists of a triangle ACB [see first part of § 260, or use the graphic method of § 389, thus utilizing a force diagram 012.], its altitude being the moment represented by the PI Iordinate CD and having a value = 12. Hence the total c moment-area = ]/2 base AB x mom. CD i.e., = *JA x y21 = # fu,…
Mechanics, Applied · Engineering · Strength of materials
