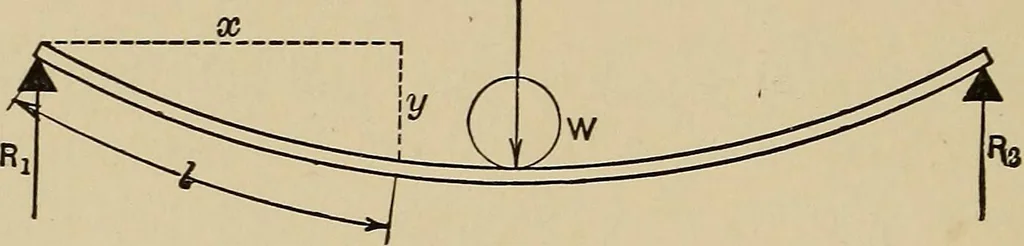

oints in bridge construction. 39. Examples in Beam Deflection. — The expressions for themaximum deflections of beams under several different condi-tions of support and loading will here be derived; those for otherconditions may be found by similar processes. Example 1. Simple beam with a load W… … Fig. 66. To find C we must know the slope at some point. At themiddle of the beam the tangent to the elastic curve is hori-zontal, consequently there is no slope at that point, hence ^ = o when x = —, therefore C = -r- • dx 2 10 Then dx 4 i6 Integrating the second time, we get Ely Wx WDx + C. 12 l6…
