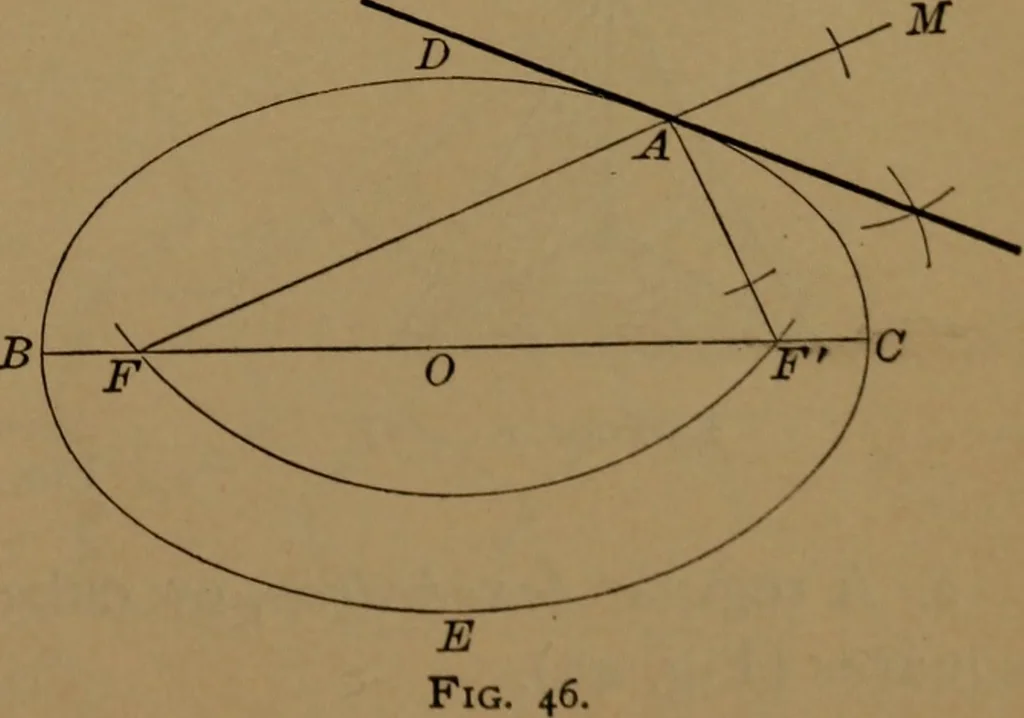

us equal to its distancefrom F\ the nearest focus, de-scribe an arc. From the otherfocus, 7^, with the transverse axisBC as a radius, cut the arc in Pand S^ and join FF and SF^ cut-ting the curve in O and M. FromA^ through these points O andMy draw the tangents. Fig. 45. Problem 10. — To draw a… … 28 ELEMENTS OF MECHANICAL DRA WING. points F and F. From the given point A^ draw straight lines to thefoci 7^ and 7^, and produce 7^^ beyond the curve to the point J/.Bisect the angle MAF\ This bisecting line is the required tangent. LESSON XII.GEOMETRICAL SOLIDS UNFOLDED. The pupil will draw the…
