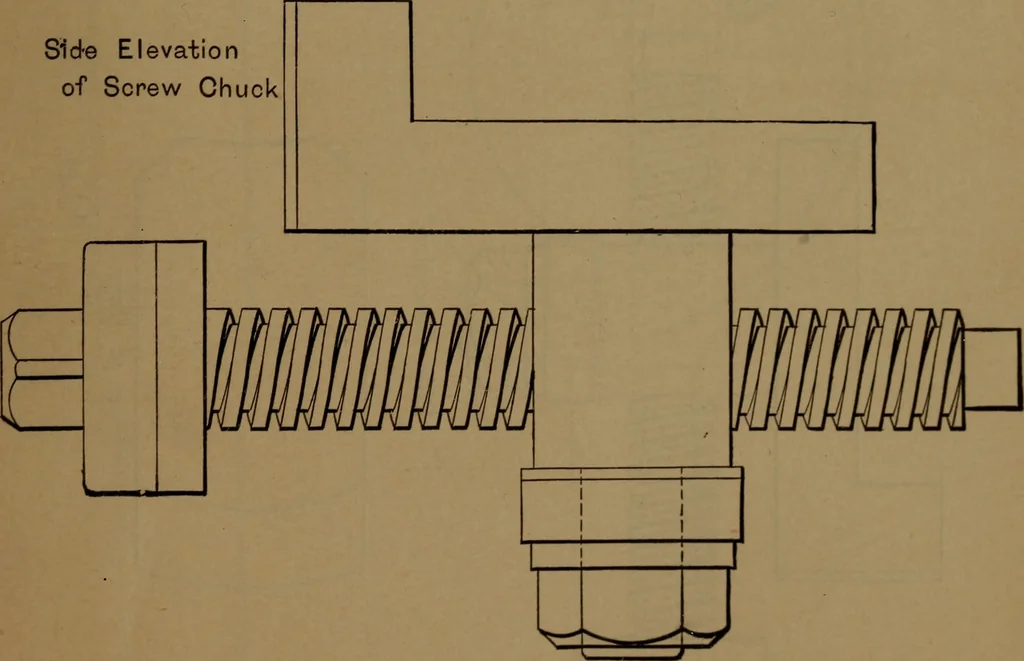

End Elevation Fig. 89. Exercise 2. — Side and end elevation of screw punch (Fig. 89). Note. — Pupils will make sketches of faucet., wrench, and pulley, and from thesesketches make working drawings to scales. MECHANICAL DEVICES, 53 LESSON XXI. MECHANICAL DEVICES. — Concluded, Exercise 3. — Screw… … Fig. 90. 54 ELEMENTS OF MECHANICAL DRA WING.
