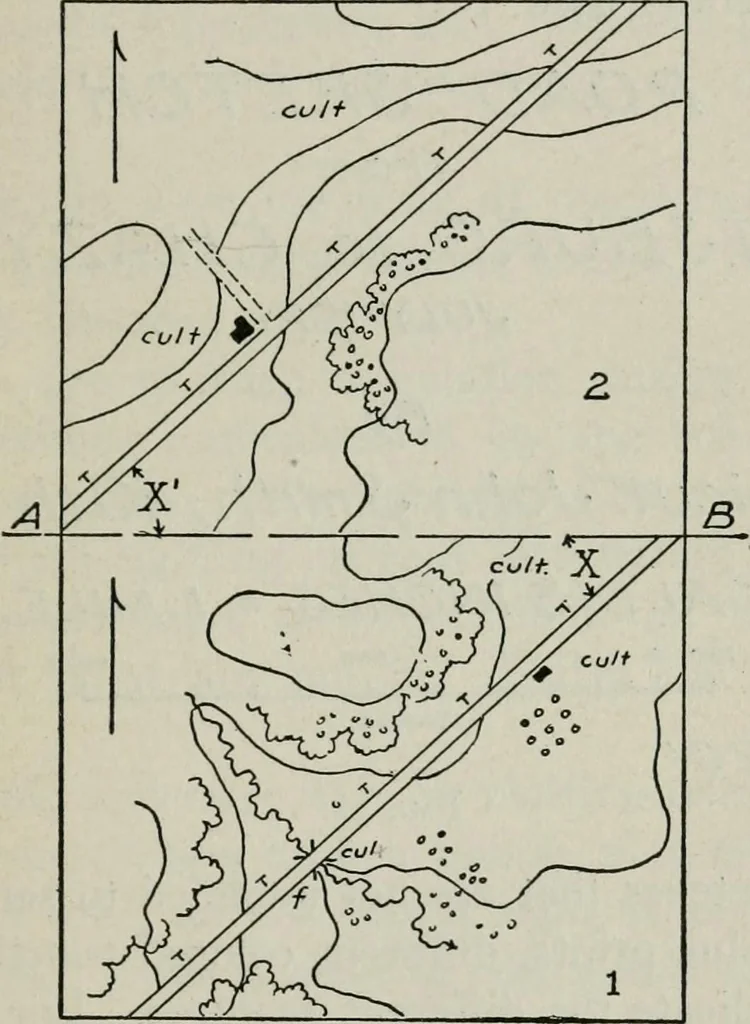

e starting point onthe paper should be selected with a view of gettingas much of the sketch as possible on that sheet.) Wemay thus have a series of sections of the same route.Number these sections In sequence. The sketch isfinally completed by pasting the several sections to-gether, or on a larger… … Fig. 30. south Hues of all sections parallel. If the north andsouth lines are not parallel it will have the same effectas inaccurate orientation, causing an error of directionin the completed sketch. 54 ELEMENTS OF MILITARY SKETCHING To complete the sketch a simple legend or title,with the name of…
