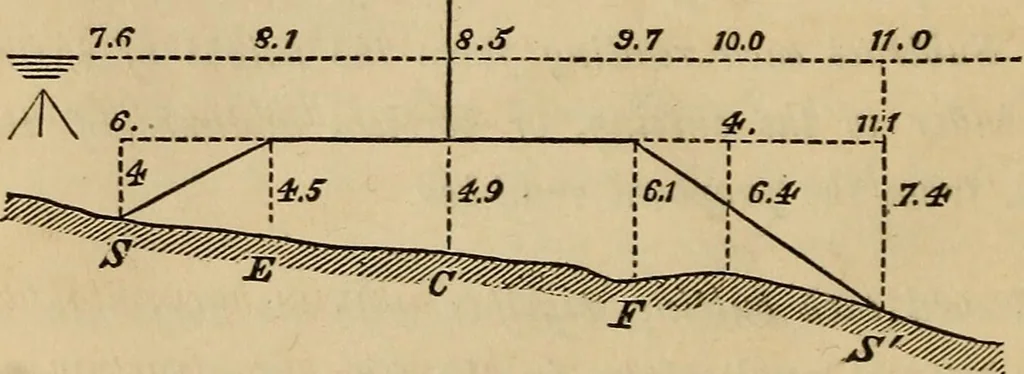

e ground in that distance rise 2 feet, (and which in practice may be determined pretty correctly by the eye), then the horizontal distance must be in-creased by something more than 1|- times 2 feet. ]When the surface descends, the estimated distance out, for |a level surface, should in like manner… … Dist. Left. CentreCut. Eight. - 4. - 4.56. A -4.9 -6.1A -6.44 - 7.411.1 The diagram represents an embankment cross section, inwhich, by reason of the small depth of filling, the height ofinstrument is a positive quantity. SEC. IV.] CROSS-SECTION LEYELIilNG. 253 The centre cut is —4.9; reading of…
