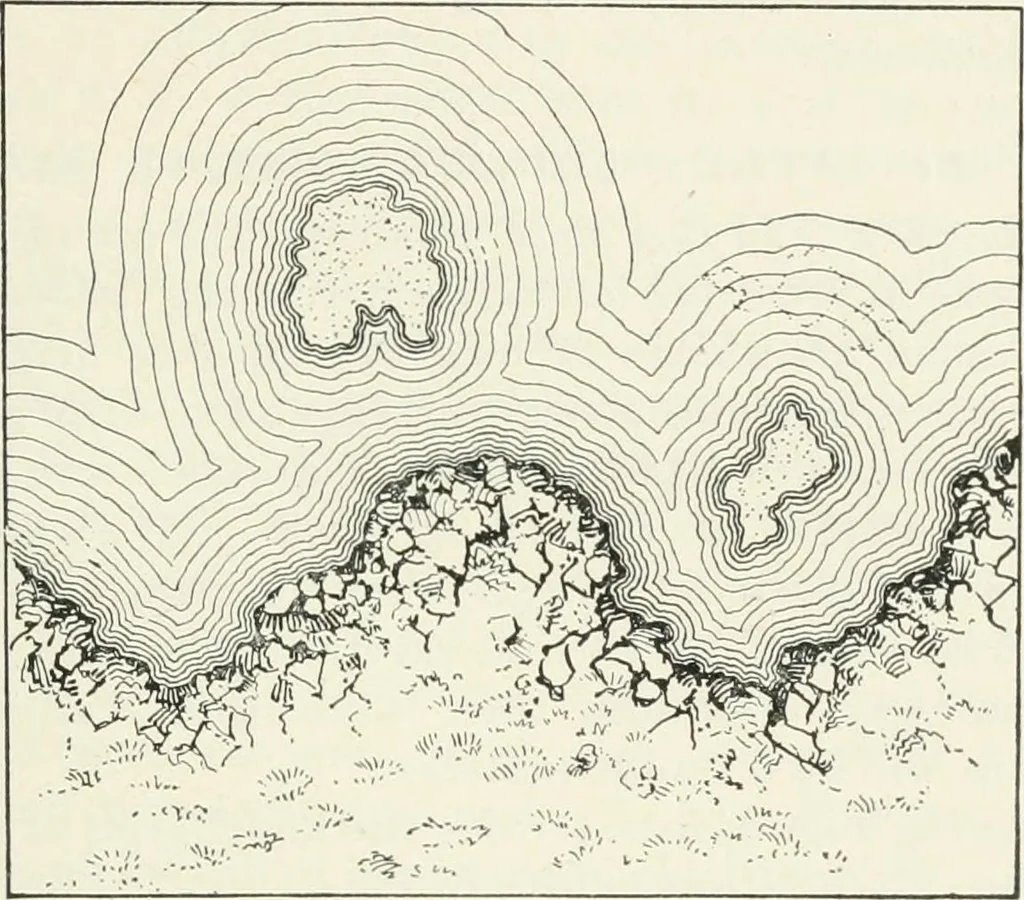

FIG. 351. MAPPING. ^ni distance from the shore Hne, a parallel line is drawn, and alittle further removed a second parallel, and so on, as inFig. 351. An abrupt and rocky shore is shown in Fig. 352. Theirregular dotted surfaces surrounded by shore lines represent … Fig. ■.}5-i. sand bars. The dotted outlines beyond the shore linesrepresent either shoals or sunken rocks.
