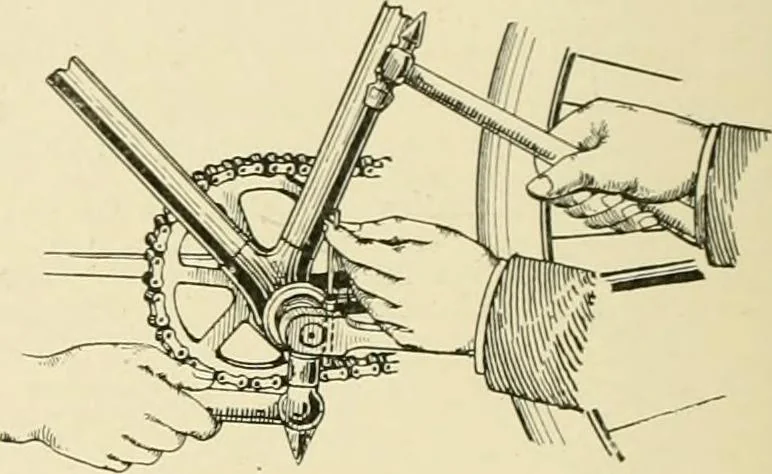

d betweenthe outside of the crank bosses, i.e., it is the length ofthe axle, and as crooked cranks are now obsolete, thisfurnishes a fair standard of comparison. The tread may vary from 4f to 5i inches on machineswith clearance for gear cases ; on racing mnchines w-eshould place 4^ in. as the safe… … Fig. 7—Method of detaching the Crank. To attach the crank—Fit it on to the a.xle, pressing it in and twist-ing it round till it comes flush. If it goes on very stiffly a tap with amallet will drive it home. Then turn the crank upon the axle tillthe flattened side of the axle is parallel with the…
