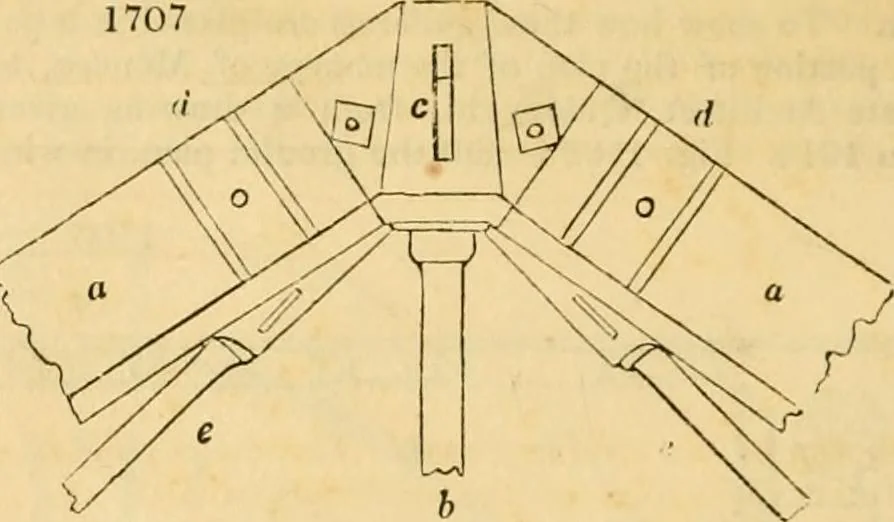

e principal ribsor rafters, z. In this manner the whole system is resolved into two triangles, d y z;in which the sides d y and z y are subjected to tensile, and the side d z to com-pressing forces. Thus, the whole principal, or couple, is firmly trussed. Fig. 1707 is anenlarged view of the centre… … 1708 P\ n ^ m .r^ ^ n 4 L ^L^ ^ L/ U ^ 1 tension rods of the main ribs.Fig. 1708 is an edge view, orbirds-eye plan, of the same.Fig. 1709 shows the extremelower terminations of the prin-cipal rafters; o, the rib; p, thelower end of the tension bar; n,the retaining pin passed throughthe projection…
