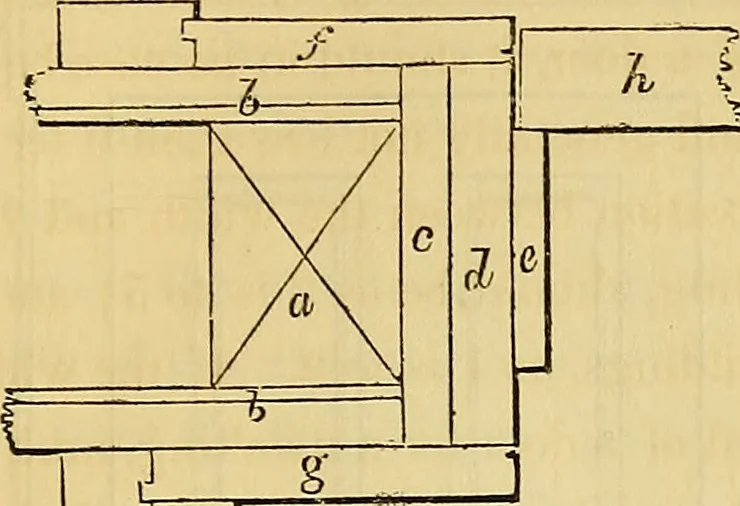

5 inches wide ; and in a door,3 feet 6 inches wide, the stiles should be 6 inches. If a door, 3feet 6 inches wide, is to have 3 panels in width, the stiles andmuntins should be each 4^ inches wide, each panel being 8 inches.The bottom rail and the lock rail ought to be each equal inwidth to j\ of… … U^ 346.—Fig. 250 shows an approved method of trimming doors :a is the door stud ; b, the lath and plaster ; c, the ground ; d, thejamb ; e, the stop ; /and g, architrave casings ; and h, the doorstile. It is customary in ordinary work to form the stop for thedoor by rebating the jamb. But, when the…
