The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 287

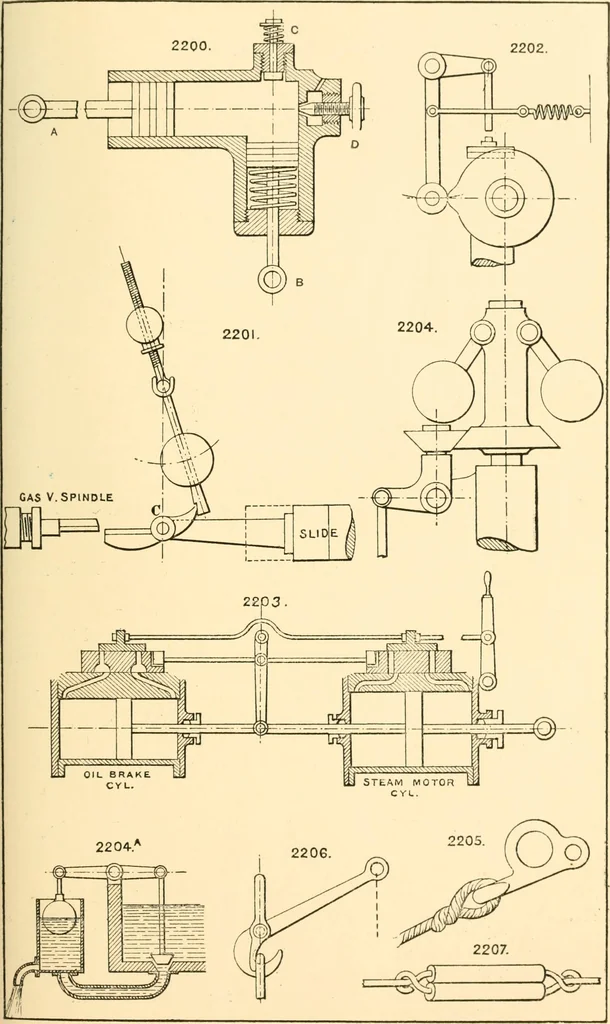

linders simultaneouslythe pistons only travel till they cut otf their own supply, the oilfluid preventing expansive action of the steam. 2204. Centrifugal ball governor, with cone wheel motion to operate the cut off. 2204a. Even-flow regulator or governing valve, for drawing off from atank. Section… … 2 82 THE ENGINEERS SKETCH-BOOK. 2208. Loop or eye shackle. 2209. Swivel shackle for guy, roJ, or Look. 2210. Slip hook. Section 44.—INDICATING SPEEDS, &c. (Sec also p. 100.) Indicators are employed— To register the entry and exit of workmen to or from a factory;To register speeds and variation…
Mechanical movements
