The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 301

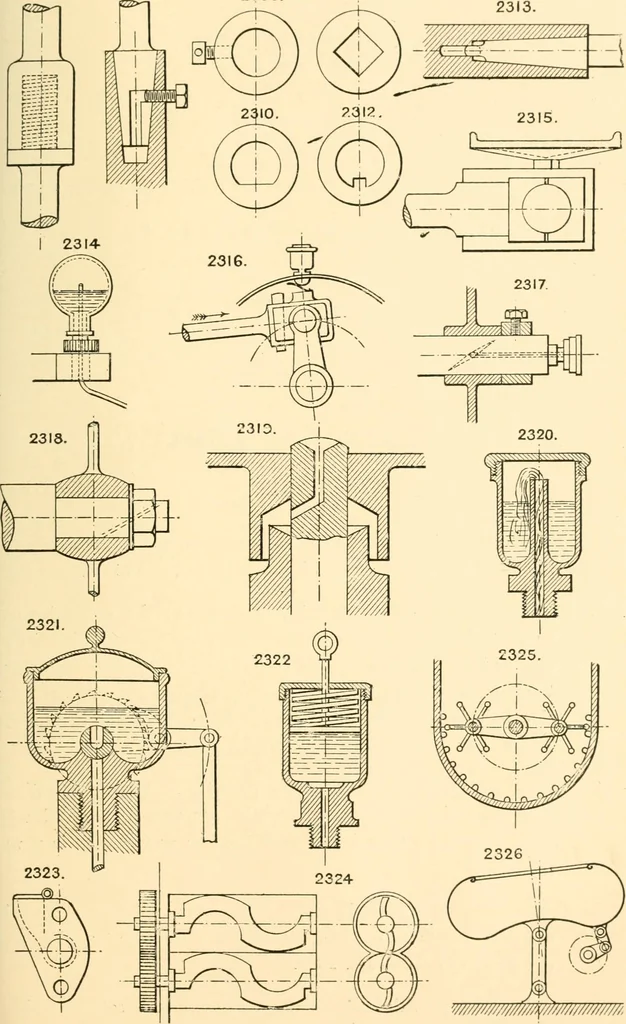

into the tube bolow. 2322. Spring piston lubricator. 2323. Gland, with oil well. Section 54.—MIXING AND INCORPORATING. (See also p. 122.) 2324. Dough mixer, or kneading machine. 2325. Mixing machine. 2326. Mixer for confectionery, worked by a crank.Mixing of gases by compound jets. See Section 45.… … w///mw////wm//M/M 296 THE ENGINEERS SKETCH-BOOK. Section 55.—PARALLEL MOTIONS. (See also p, 124.) 2327. Parallel motion for an indicator penciL 2328. Parallel motion beam engine, with rocking link beam centres. 2329. Parallel moving swinging bracket for gas, &c. 2330. Parallel motion. 2331.…
Mechanical movements
