Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)
Chicago : American school of correspondence · leaf 54

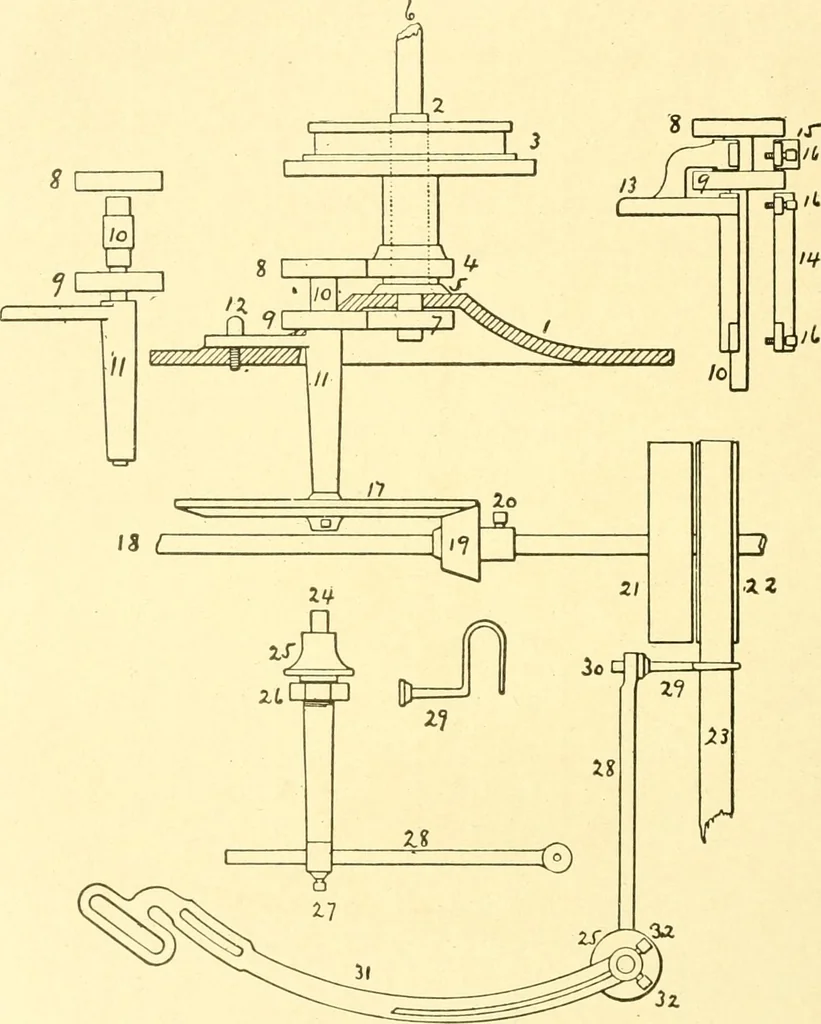

nder the table. Each of thesecounters have a tight and loose pulley, for the cylinder is startedand stopped with a shipj^er Avhich is mounted on top of the tablewithin easy reach of the operator, as is shown in detail in Fig. 15.On each counter is a bevel pinion that meslies with a bevel gear 43 32… … Fig. 15. Cylinder Drive. The gear on the lower end of the vertical shaft is hidden by thebed plate, but is shown in detail in this illustration. This verti-cal shaft drives the take-up, revolves in the same direction as thecylinder and makes the same number of revolutions per minute. KNITTING. 33…
Textile industry · Textile fabrics
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
