The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 327

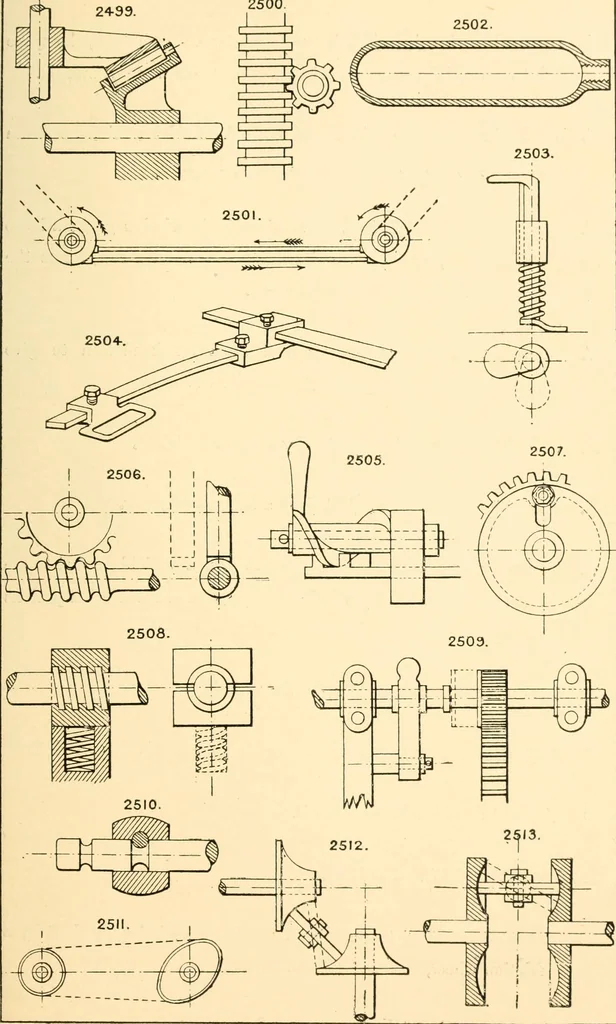

gear, to shift the pinion out of gear or chan<;e to another speed (as in No. 2293). 2510. Another method of locking ^ sliding shaft in or out of gear. Section 88.—VARIABLE MOTION AND POWER, {See also p. 194.) 2511. Variable belt drive by elliptic pulley. 2512. Variable drive by an intermediate… … 322 THE ENGINEERS SKETCH-BOOK, 2514. Variable drive hy a V belt running between cone discs, the space between which can be varied by a hand lever or screw motion. 2515. Variable compensation weight and parallel motion for steam engines, by M. N. Forney, New York, 1893. 2516. Variable cone driving.…
Mechanical movements
