Erection and test of the Sayers and Zimmerman steam engine (1906)
Moore, Francis Guy · leaf 17

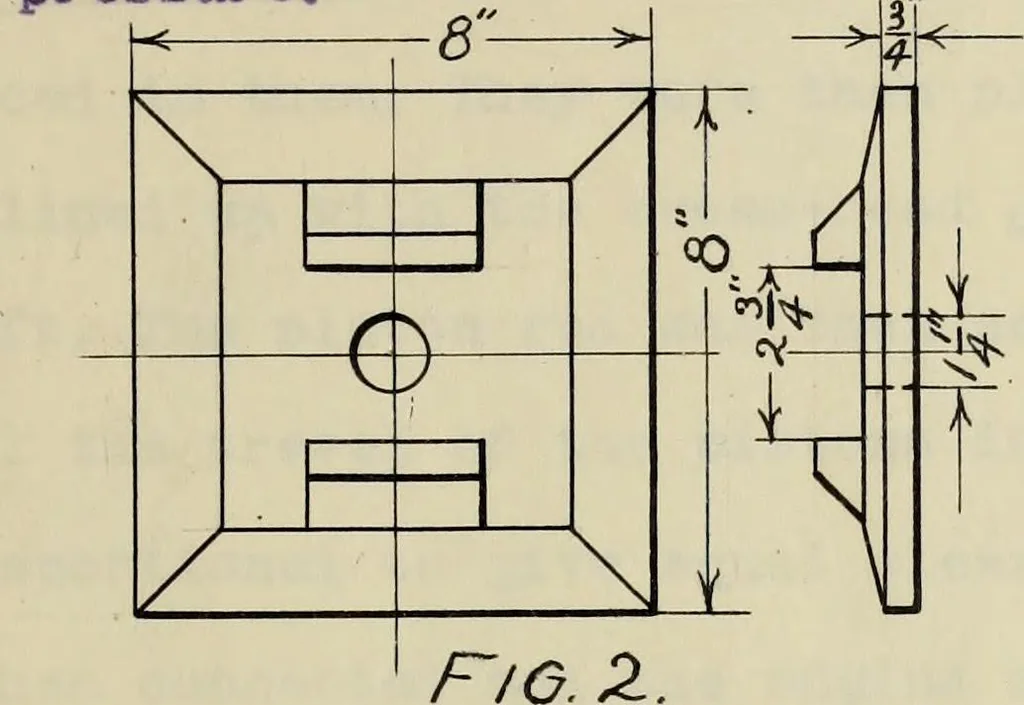

lts. The bed was then placed in position and the out-boardbearing set to tiie main bearing. This was done by leveling tothe centers of the two bearingb aiU squaring from the cross-head guides. Cement was also flushed under and in the out-board pedestal. Assembling, Now commenced the work of… … and adjusted until the travel of the cross-head was proport-ioned between the ends of the guides. The cylinders were connected in the machine shop andthe pistons placed in them. They were then placed in positionon the bed. and lined up with the cross-head guides and centerof the main shaft. The…
