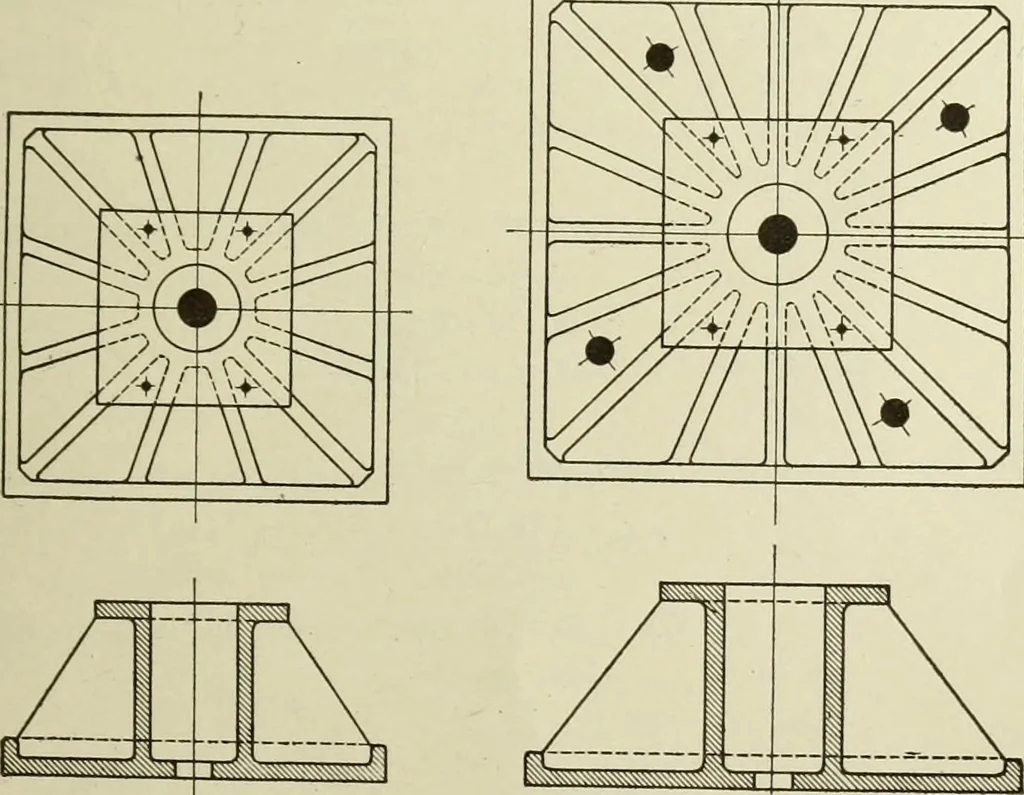

4-O ffOUA/JD C.I. BASE … JO TO SO SQUARE BASE.. s.0 ro e.Q SQUARE BASE Fig. 151. Types of Cast Iron Pedestals •222 STEEL CONSTRUCTION The size of the top plate is determined by the size of the columnand its connection angles. In this rase assume 20 inches. The height must be assumed. It may vary between one-third and…
