The essentials of gearing; a text book for students and for self-instruction, containing numerous problems and practical formulas (1911)
Anthony, Gardner C. (Gardner Chace), 1856- · Boston : D.C. Heath · leaf 17

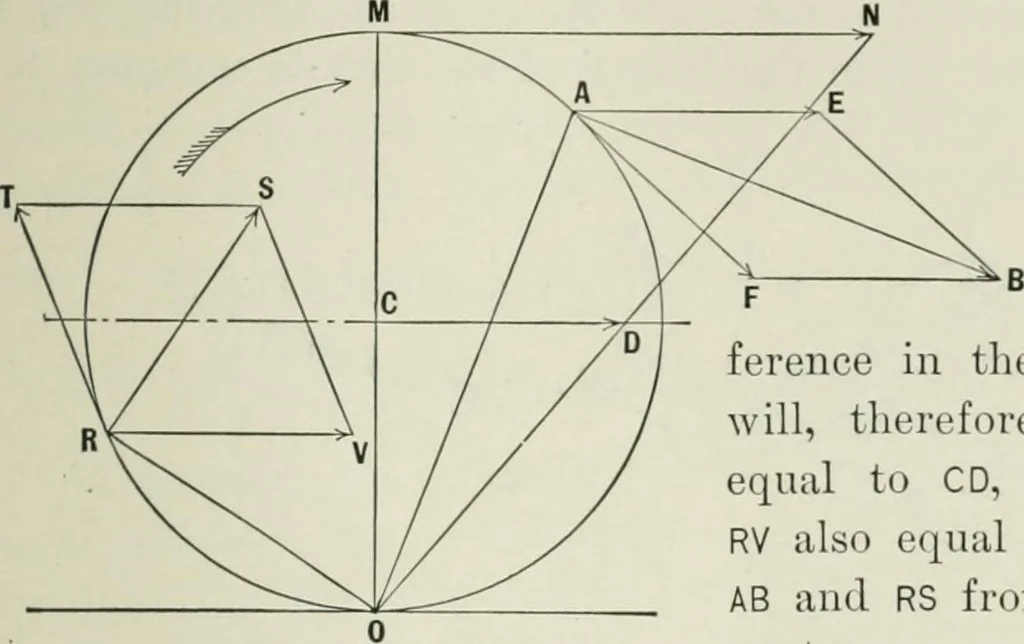

ove in horizontals, the point of intersection of theperpendiculars from tliese points will be indeterminate, and other means must be emploj-edto determine the centro. The velocities of points C and M will be CD and MN. The latter isthe resultant of two liorizontal components equal to CD, one being… … Fig-. IV. XIV INTRODUCTION. VII. Velocity Ratio as Determined by Intermediate Connectors. F and G, Fig. V, are thefixed centers of the revolving arms 1 and 2, their free ends being connected by the link EK.It is required to determine the velocity ratio between 1 and 2 for the instant shown. Peoof.…
Gearing
