The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 325

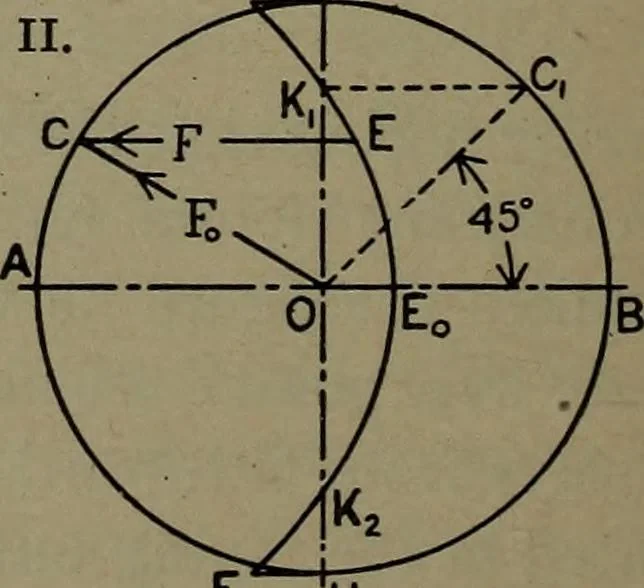

H E* H Fig. 168. — Circular Diagrams of Inertia Force. of force, it must be remembered that accelerating force will pointtoward the center O or toward the limit line GH or EiE0E2; while § 32 (a)] WORKING FORCES IN THE ENGINE. 309 inertia force will point outward, or away from the middle of the…
Steam-engines · Steam-turbines
