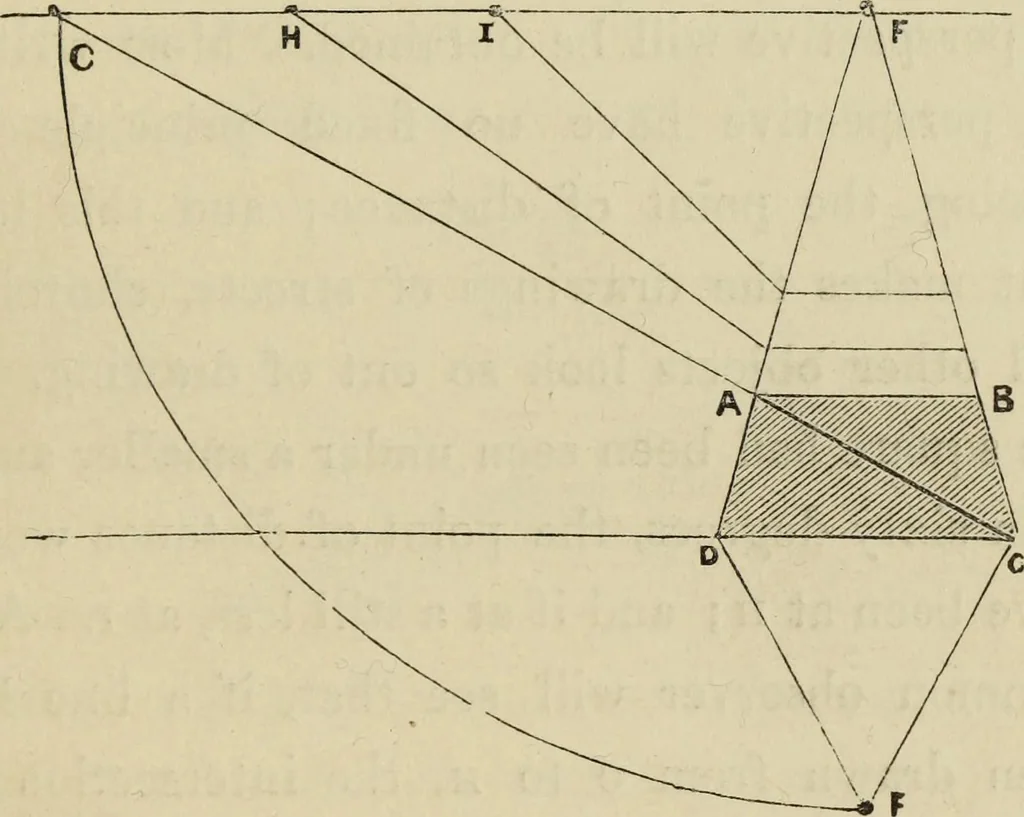

We will now proceed to draw the perspectiveappearance of this square. First draw the baseline; upon which draw that end of the squarethat is nearest the eye, d c. (We will suppose MANUAL OF PERSPECTIVE. 31 the angular point f found as directed in the lastdiagram.) Next draw the horizontal line,… … sight.) Then place one leg of the compasses onthe point of sight, and the other on the point ofstation; draw a curved line from the stationpoint to the horizontal line, and where the 32 MANUAL OF PERSPECTIVE. curved line intersects, or touches, the horizontalline, will be the true point of distance…
