The essentials of gearing; a text book for students and for self-instruction, containing numerous problems and practical formulas (1911)
Anthony, Gardner C. (Gardner Chace), 1856- · Boston : D.C. Heath · leaf 20

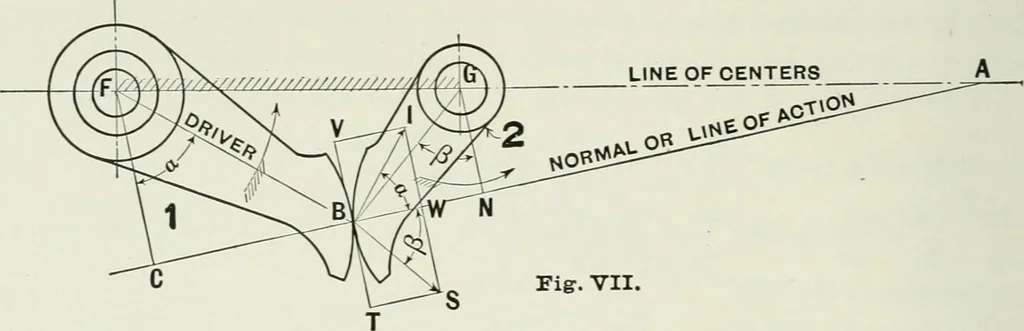

XVI INTRODUCTION. VIII. Velocity Ratio in Contact Motion. Fig. VII. F and G are the fixed centers ofrevolving arms 1 and 2 having curved surfaces in contact. Motion is imparted from 1 to 2by contact between the curved ends, the direction of rotation being indicated by arrows.It is required to… … Fi&. VII. At the point of contact B draw the common tangent BT, and the normal BW, Let Bl, per-pendicular to BF at B, represent the linear velocity of point B in arm 1, the angular velocity being Bl_ bf Resolve Bl into the tangential component BV and normal component BW. The direction of motion…
