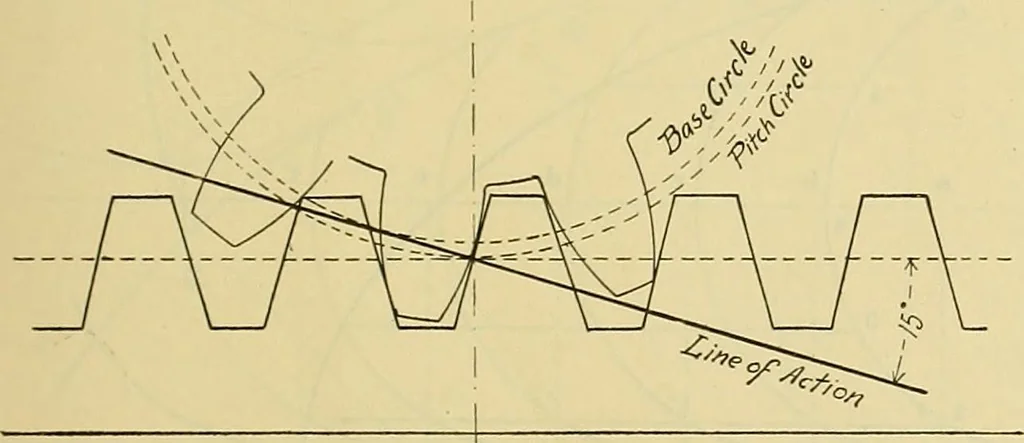

Fig. 428. tion of an epicycloid and the flank a hypocycloid,both joined in the pitch point. If a circle is made to roll along a straight line,always remaining in the same- plane, a point in thecircumference of the rolling circle will describe acycloidal curve. The rolling circle is called the… … Fig. 429. If the generating circle rolls along a straight lineit will describe a cycloid. If the generating circlerolls along the outside of a circle it will describe anepicycloid, and when rolling along the inside of acircle, it will describe a hypoc\cloid. The construction of these curves is…
