The practical application of the slide valve and link motion to stationary, portable, locomotive, and marine engines : with new and simple methods for proportioning the parts (1870)
Auchincloss, W. S. (William Stuart), 1842-1928 · New York : Van Nostrand · leaf 96

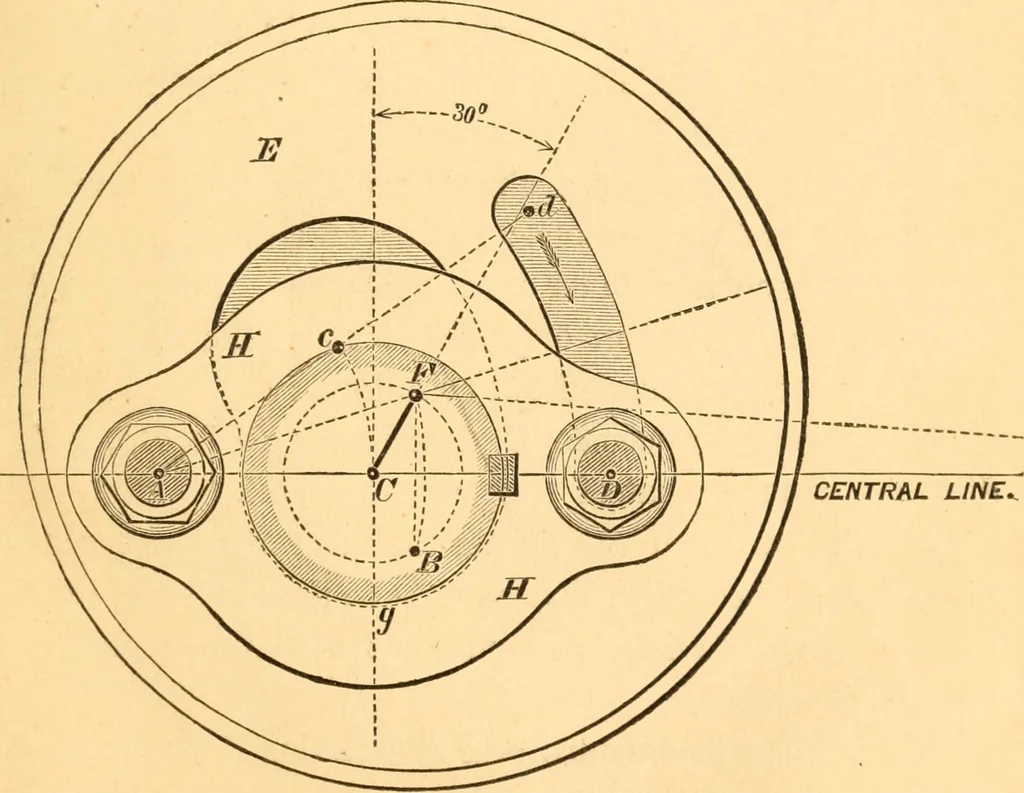

nd, that theDodd Wedge Motion cannot be corrected for inequalitiesof cut-off and exhaust closure due to angularity of theconnecting rod, without introducing mid gear inequal-ities of port opening, far more pernicious in their effectsthan the evils we seek to abate. The second class of motors find… … The collar H, being firmly keyed upon the main shaft c g,carries on one side a bolt A which performs the office of apivot to the slotted eccentric pulley E. Through the oppo- 86 ADJUSTABLE ECCENTRICS. site side passes the bolt D fitting loosely the slot D d0 andcapable of clamping the pulley in any…
Steam-engines
