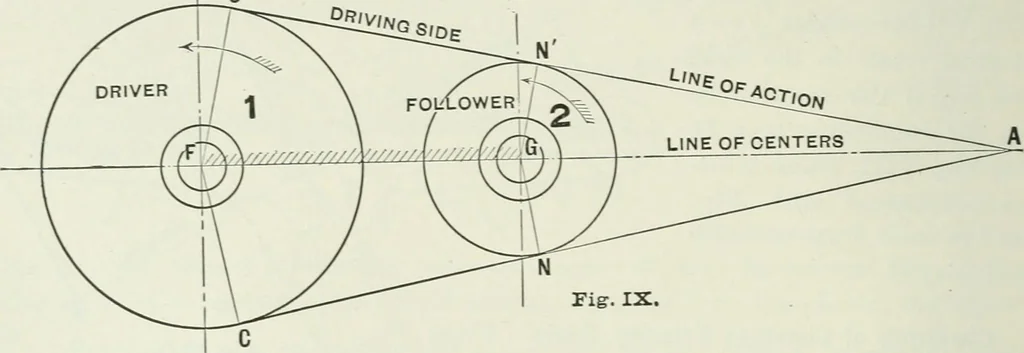

AF XYUl INTRODUCTION. nism. Figure IX illustrates this case. FG is the fixed link, FC and GN (the radii at the point ortangency with the flexible link) are the rotating arras, and CN the connector link. If 1 be thedriver, the driving side of the belt, or flexible connector, will be CN, but in other… … Tig. IX. XI. Similarity between the Three Modes of Transmission. Figure XI illustrates a combina-tion of Figs. V, VII, and IX. It will be observed that the center line of link EK, the normalcomponent BW, and the line of the belt CN all coincide, and that the common normal, or lineof action,…
