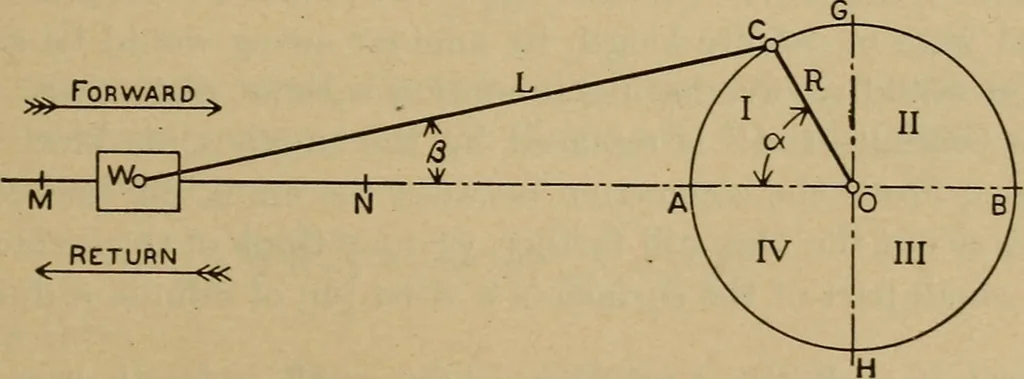

gal force to gra\dty force, at the center of the crank pin, or a© -^ g, isabout 4.7 in the larger and 13.3 in the smaller engine. Finally, with the crank at 60°, where sin a = 0.8660 and cos a = 0.500,the piston velocity and acceleration are, v = Vosma= 16.76 X 0.866 = 14.53a = Oo cos a = 150.4 X… … Fig. 162. — The Slider-crank Mechanism. in Fig. 162. Crank travel is estimated from OA, all the way round thecircle, the latter being divided into quadrants as indicated, and the 302 WORKING AND CONSTRUCTION OF THE ENGINE. [Chap. VII. piston movement is divided into forward and return strokes. When…Steam-engines · Steam-turbines
