Hale, Joseph W. L. (Joseph Woodwell Ledwidge), 1886- · New York [etc.] McGraw-Hill book company · leaf 87

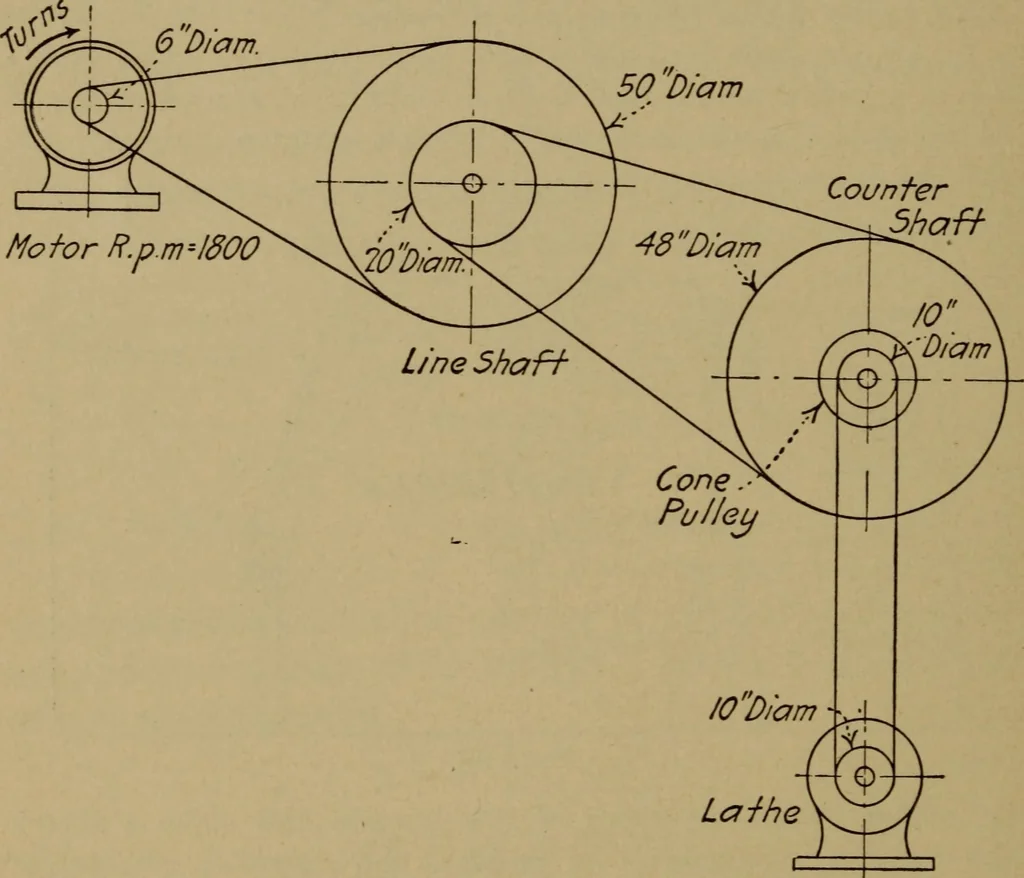

beltis 2 per cent, of the driving speed. On the second shaft is a secondpulley 36 in. in diam. which is connected through a belt to an18-in. pulley on an electric generator. The belt on the generator 72 MECHANICS AND ALLIED SUBJECTS slips 3 per cent, of the driving speed of the second shaft. What… … Fig. 93. 1. The diameter of pulley on motor shaft. 2. The speed in r.p.m. of lathe countershaft. 3. The speed of lathe. Pulley on lathe countershaft is 12 in.in diameter. 4. The speed of grinder countershaft. Pulley on grindercountershaft is 8 in. in diameter. 5. The speed of grinder. 6. The weight…
Mechanics, Applied
