The essentials of gearing; a text book for students and for self-instruction, containing numerous problems and practical formulas (1911)
Anthony, Gardner C. (Gardner Chace), 1856- · Boston : D.C. Heath · leaf 86

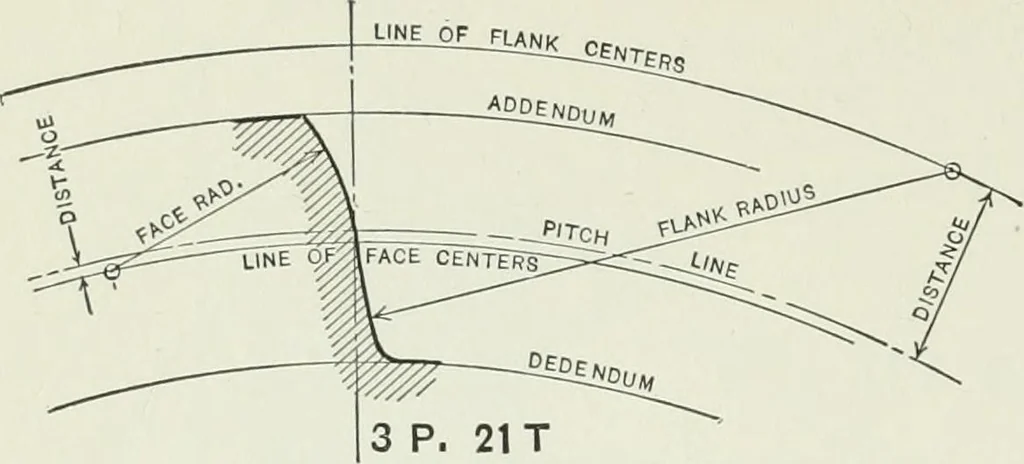

of the more useful tables and methods to which reference may be madewhen required. This is particularly true in the case of the involute tooth, which is the onemost used. Three methods are employed for approximating tlie odontoidal curves. First, by circular arcs, the centers and radii of which are… … GRANTS EPICYCLOIDAL ODONTOGRAPH.i 3 P. 21 T 65. The Three Point Odontograph, designedby Mr. George B. Grant, is a table for theface and flank radii, and location of centersfor circular arcs approximating the true curvesof epicycloidal teeth. It is designed for thatsystem which has for its base a…
Gearing
