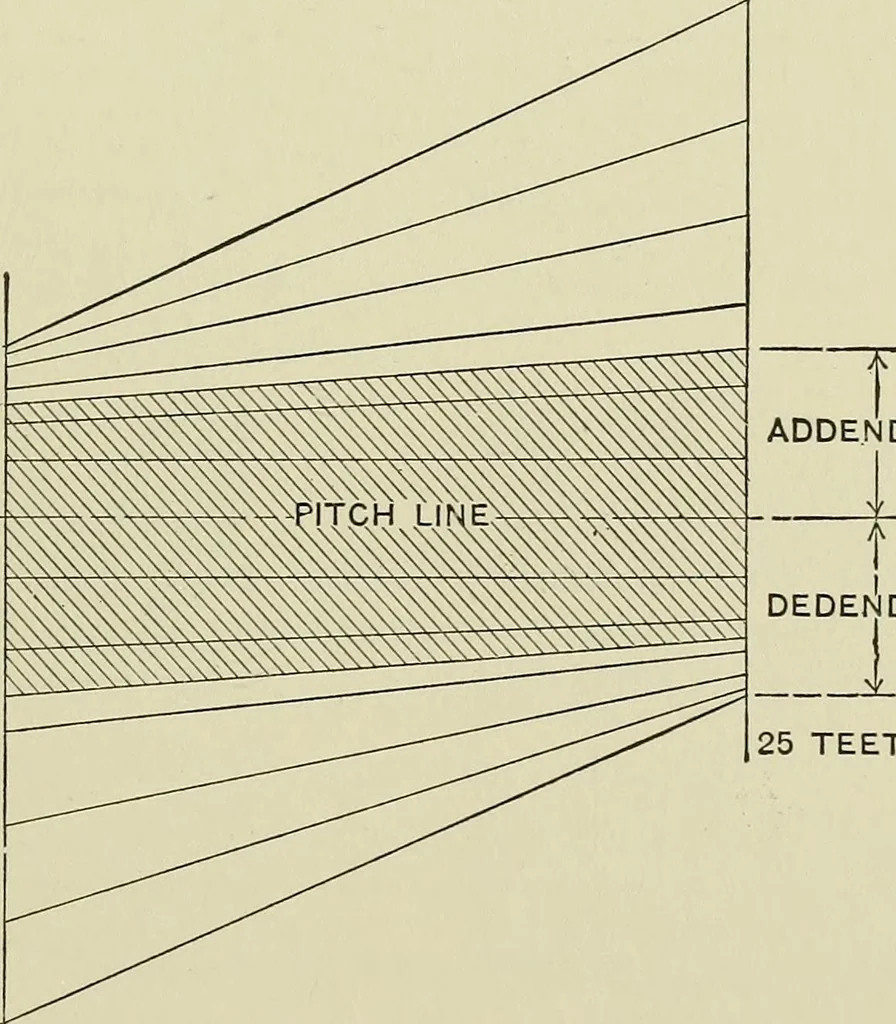

t, on account of the greater angle of the line of action of thestub-tooth, the maximum arc of action is much increased;second, the ratio of the actual to the maximum arc of action ofthe stub-tooth is much less than with the i4j-degree tooth. This latter point is a very important one, as we thus… … DEDENDUM 25 TEETH Machinery Fig. 7. The Involute Curves in Fig. 5 developed into Straight Lines — Stub Teeth sliding takes place, with its inevitable wear, we see that it is agood thing to cut out all we can of it. In the stub-tooth thepoint of the tooth which wears out the flank of its mate is…
