Essentials of drafting; a text and problem book for apprentice, trade and evening technical schools (1918)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 106

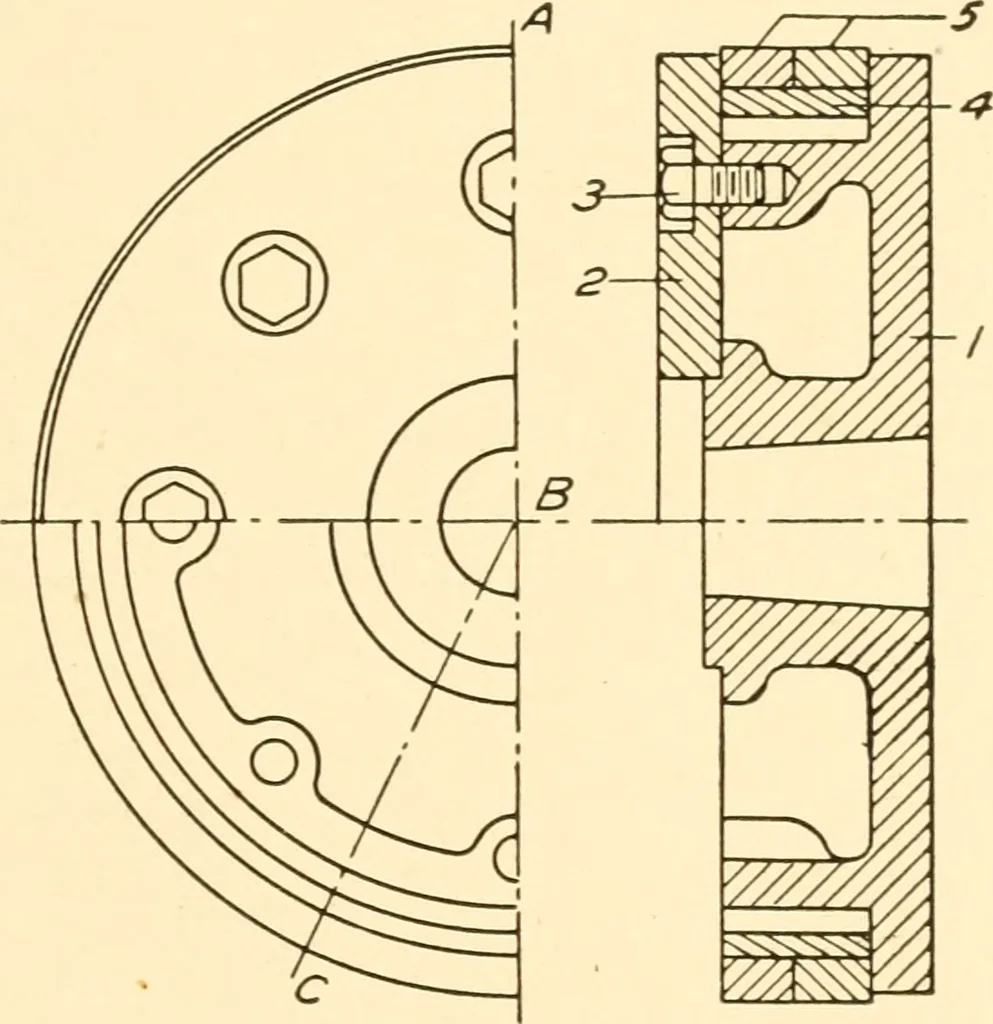

Fig. ^11 … Fig. 2/2 through the piston rod, crosshead, and connecting rod to thecrank. The crank causes the shaft to revolve, carrying with itthe flywheel, from which power may be transmitted by means ofa belt. Pistons. — Pistons are used in many forms of machines andvary accordingly. Some forms are shown in…
Mechanical drawing
